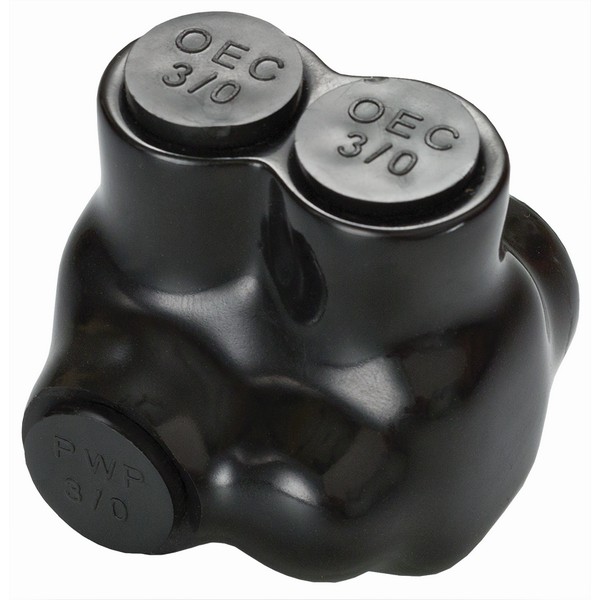

Morris 97058 Offset Entry Insulated Connectors make splicing easy and secure, designed to meet the needs of professionals in various electrical applications. Constructed from durable 6061-T6 aluminum and dual-rated for use with both copper and aluminum wires, these connectors offer versatility and reliability. The rugged high-dielectric rubber/vinyl coating provides excellent insulation, ensuring safety and performance in demanding environments. Each connector comes pre-filled with an oxide inhibitor, enhancing its durability and effectiveness. The easy re-entry design allows for quick changes, inspections, or troubleshooting, making it a practical choice for both new installations and maintenance work. Additionally, plugs are clearly marked with the maximum wire size for straightforward identification, streamlining the installation process. With a temperature range of –49°F to 194°F (–45° to 90°C) and rated for 600 volts, the Morris 97058 connectors are suitable for indoor use only. They accommodate wire sizes ranging from 3/0 to 6, with one wire per terminal, ensuring a secure connection. Listed under ANSI C119.4 and cULus 486b, these connectors meet stringent safety standards. Enhance your electrical projects with the reliability and ease of Morris 97058 Offset Entry Insulated Connectors.
Offset Entry Insulated Connectors make splicing easy and secure.
Al9cu Dual Rating: AL9CU Dual Rated
Allen Hex: 1/4"
Color: Black
Connector Type: OffSet Entry Splice
Country of Origin: India
Description: Black Insulated 2 Conductor OffSet Entry Splice 3/0-6
Height: 2.37"
Insulation Type: Rubber
Length: 2.18"
Material: 6061-T6 Aluminum
Maximum Voltage: 600
Mfg Standard: UL 486B
Temperature Rating: -49oF to 194oF (-45o to 90oC)
Type: Black Insulated 2 Conductor OffSet Entry Splice
Ul Listing: cULus
Upc: 601986970587
Warning: Cancer and Reproductive Harm
Width: 2.48"
Wire Range: 3/0 - 6
Wire Size: 3/0 - 6
