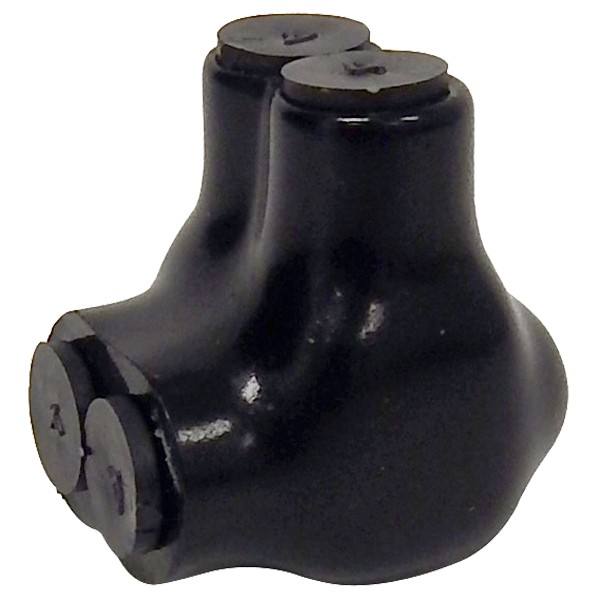

Morris 97102 Single Entry Insulated Connector makes splicing both easy and secure, designed for professionals seeking reliable solutions in electrical work. This insulated connector allows both wires to enter from the same side, streamlining the installation process. Crafted from 6061-T6 aluminum, it is dual-rated for use with copper and aluminum wires, ensuring versatility in a variety of applications. The connector features a rugged high-dielectric rubber/vinyl coating, providing superior insulation and protection against environmental factors. Pre-filled with an oxide inhibitor, it enhances conductivity while preventing corrosion over time. Designed for easy re-entry, the connector offers accessibility for changes, inspections, or troubleshooting, making it an excellent choice for ongoing maintenance. With a temperature range from –49°F to 194°F (–45° to 90°C), the Morris 97102 can handle the demands of both residential and commercial settings. It is rated for 600 volts and is compliant with ANSI C119.4 and cULus 486b standards, ensuring safety and reliability. Each plug is marked with the maximum wire size for effortless identification, accommodating wires ranging from 4 to 14 AWG. Ideal for indoor use only, this connector is a must-have for any electrician's toolkit.
Single Entry Insulated Connector makes splicing easy and secure.
Al9cu Dual Rating: AL9CU Dual Rated
Allen Hex: Slotted
Color: Black
Connector Type: Single Entry
Country of Origin: India
Description: Black Insulated 2 Conductor Single Side Entry Splice 4 - 14
Height: 1.38"
Insulation Type: Rubber
Length: 1.13"
Material: 6061-T6 Aluminum
Maximum Voltage: 600
Mfg Standard: UL 486B
Number of Positions: 2
Temperature Rating: -49oF to 194oF (-45o to 90oC)
Type: Black 2 Conductor Single Side Entry Splice
Ul Listing: cULus
Upc: 601986971027
Warning: Cancer and Reproductive Harm
Width: 1.25"
Wire Range: 4 - 14
Wire Size: 4 - 14
