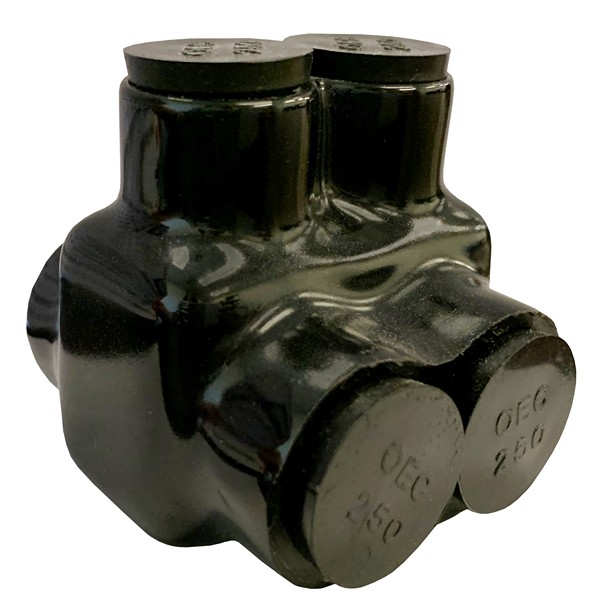

Morris 97115 2 Conductor Dual Entry Insulated Connectors are designed for cost-effective installations, ensuring reliability and versatility in various applications. These connectors feature optional wire entry from either side, offering enhanced flexibility during installation. Constructed from durable 6061-T6 aluminum, the dual-rated design accommodates both copper and aluminum wires, making them suitable for diverse wiring needs. The rugged high-dielectric rubber/vinyl coating provides excellent insulation, while the pre-filled oxide inhibitor protects against corrosion, ensuring longevity. Easy re-entry capabilities make alterations, inspections, or troubleshooting straightforward-an essential feature for maintenance work. Each connector is clearly marked with the maximum wire size, promoting quick identification and efficient use. With a temperature range of –49°F to 194°F (–45° to 90°C) and rated for use with cables up to 194°F (90°C), these connectors are reliable under various environmental conditions. They are ANSI C119.4 and cULus 486b listed for sizes up to 750MCM and UL/CSA certified, affirming their quality and safety for indoor applications. Each connector accommodates one wire per terminal and operates at 600 volts, making them a solid choice for professionals seeking dependable solutions.
2 Conductor Dual Entry Insulated Connectors for low cost installations.
Al9cu Dual Rating: AL9CU Dual Rated
Allen Hex: 3/16"
Color: Black
Connector Type: DualEntry
Country of Origin: India
Description: Black Insulated 2 Conductor Dual Entry Splice 2 Set Screws 1/0 - 14
Height: 1.83"
Insulation Type: Rubber
Length: 1.62"
Material: 6061-T6 Aluminum
Maximum Voltage: 600
Mfg Standard: UL 486B
Number of Positions: 2
Temperature Rating: -49oF to 194oF (-45o to 90oC)
Type: Black 2 Conductor Dual Entry Splice
Ul Listing: cULus
Upc: 601986971157
Warning: Cancer and Reproductive Harm
Width: 1.83"
Wire Range: 1/0 - 14
Wire Size: 1/0 - 14
