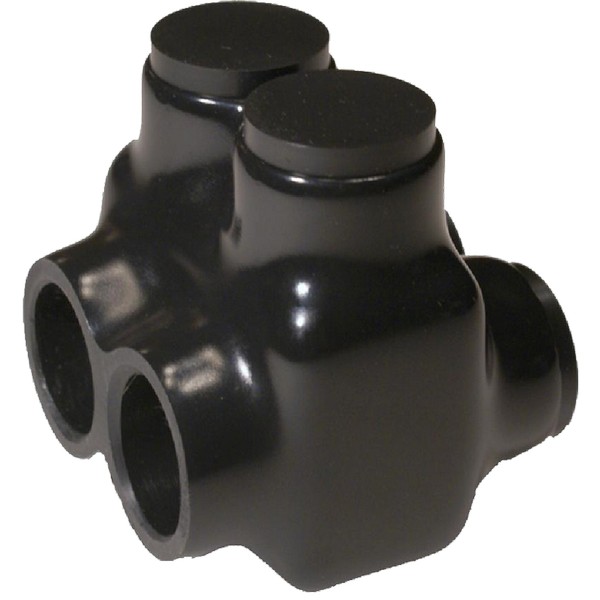

Morris 97116 2 Conductor Dual Entry Insulated Connectors offer a practical solution for low-cost installations, making them an essential choice for both professionals and knowledgeable homeowners. Designed for versatility, these connectors allow optional wire entry from either side, providing flexibility during installation. Crafted from 6061-T6 aluminum, they are dual-rated for use with both copper and aluminum wires, ensuring compatibility across various applications. The rugged high-dielectric rubber and vinyl coating enhances durability and protection against environmental factors, while the connectors come pre-filled with an oxide inhibitor to promote long-lasting performance. With easy re-entry capabilities, these connectors simplify changes, inspections, or troubleshooting when needed. Plugs are clearly marked with the maximum wire size for straightforward identification, and the connectors are rated for use with cables up to 194°F (90°C), making them suitable for a range of indoor projects. They support wire sizes from 2/0 to 6 and are ANSI C119.4 & cULus 486b listed through 750MCM, ensuring compliance with industry standards. With dimensions of 1.93" in height, 1.69" in length, and 1.88" in width, these connectors deliver both functionality and efficiency for your electrical needs.
2 Conductor Dual Entry Insulated Connectors for low cost installations.
Al9cu Dual Rating: AL9CU Dual Rated
Allen Hex: 3/16"
Color: Black
Connector Type: DualEntry
Country of Origin: India
Description: Black Insulated 2 Conductor Dual Entry Splice 2 Set Screws 2/0 - 6
Height: 1.93"
Insulation Type: Rubber
Length: 1.69"
Material: 6061-T6 Aluminum
Maximum Voltage: 600
Mfg Standard: UL 486B
Number of Positions: 2
Temperature Rating: -49oF to 194oF (-45o to 90oC)
Type: Black 2 Conductor Dual Entry Splice
Ul Listing: cULus
Upc: 601986971164
Warning: Cancer and Reproductive Harm
Width: 1.88"
Wire Range: 2/0 - 6
Wire Size: 2/0 - 6
