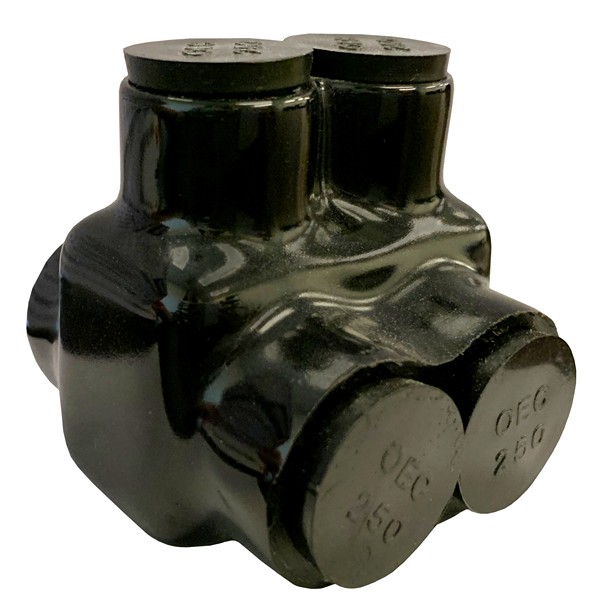

Morris 97117 2 Conductor Dual Entry Insulated Connectors are designed for low-cost installations without compromising quality. These connectors feature optional wire entry from either side, providing flexibility during installation. Constructed from durable 6061-T6 aluminum, they are dual rated for use with both copper and aluminum wires, ensuring versatility on the job site. Each insulated connector is coated with a rugged high-dielectric rubber/vinyl material, offering enhanced protection against electrical hazards. Pre-filled with an oxide inhibitor, they help maintain optimal conductivity while preventing corrosion. The design allows for easy re-entry, making changes, inspections, or troubleshooting straightforward and efficient. Marked with the maximum wire size, the plugs facilitate quick identification and proper usage, while the connectors are certified for indoor use only. They support a temperature range of –49°F to 194°F (–45° to 90°C) and are listed under ANSI C119.4 and cULus 486b standards for sizes up to 750MCM. Rated for 600 volts, these connectors can accommodate wire ranges from 3/0 to 6, with one wire per terminal. Morris 97117 connectors are an essential addition to any electrical toolkit, ensuring reliable performance in a variety of applications.
2 Conductor Dual Entry Insulated Connectors for low cost installations.
Al9cu Dual Rating: AL9CU Dual Rated
Allen Hex: 1/4"
Color: Black
Connector Type: DualEntry
Country of Origin: India
Description: Black Insulated 2 Conductor Dual Entry Splice 2 Set Screws 3/0 - 6
Height: 2.37"
Insulation Type: Rubber
Length: 2.18"
Material: 6061-T6 Aluminum
Maximum Voltage: 600
Mfg Standard: UL 486B
Number of Positions: 2
Temperature Rating: -49oF to 194oF (-45o to 90oC)
Type: Black 2 Conductor Dual Entry Splice
Ul Listing: cULus
Upc: 601986971171
Warning: Cancer and Reproductive Harm
Width: 2.48"
Wire Range: 3/0 - 6
Wire Size: 3/0 - 6
