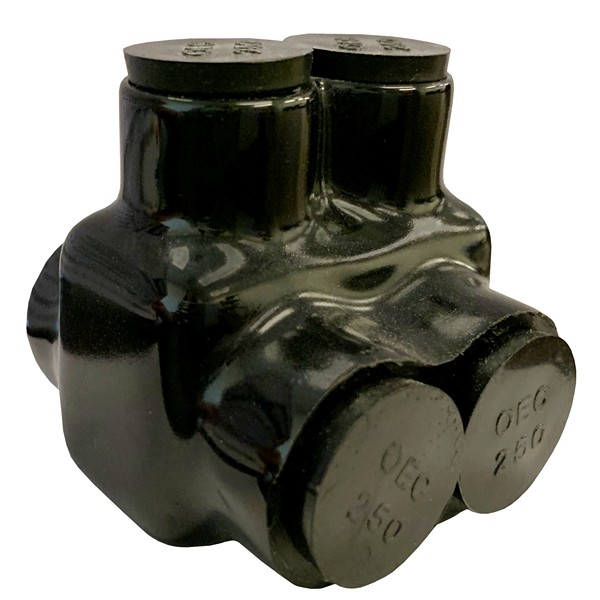

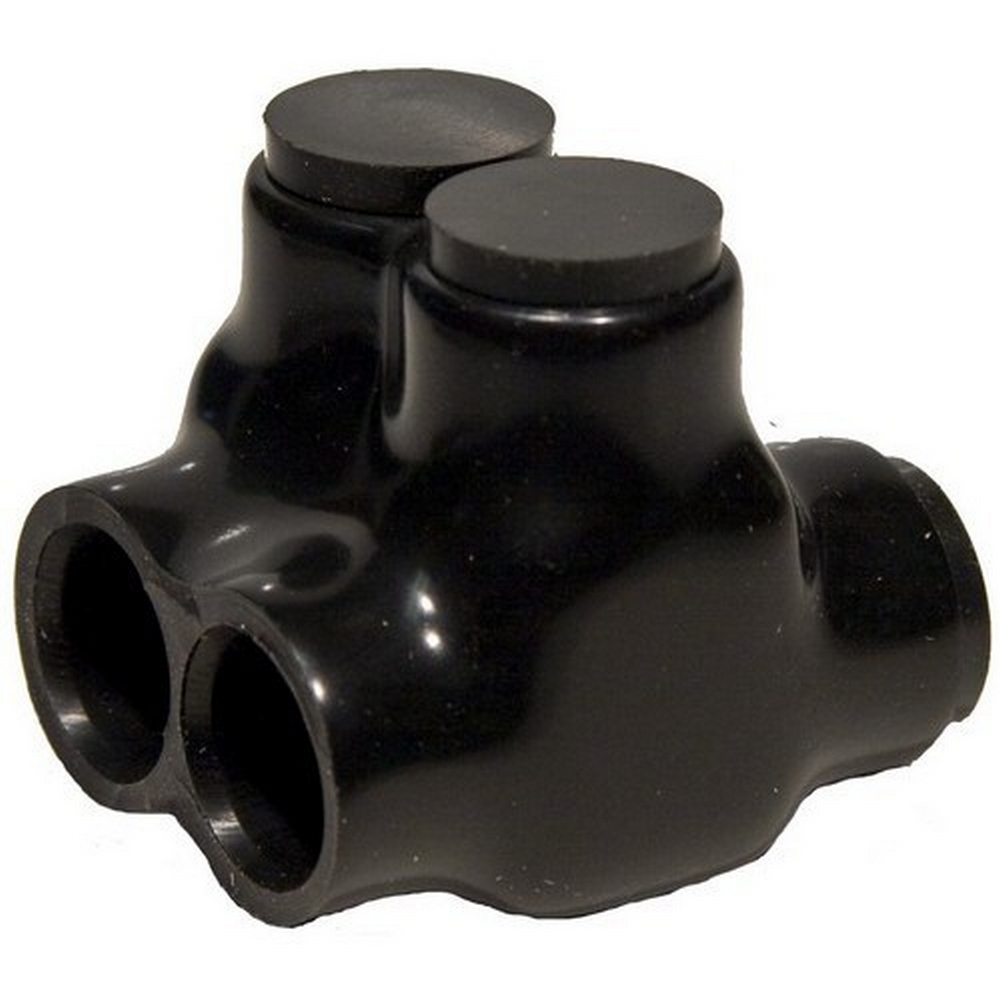

Morris 97118 2 Conductor Dual Entry Insulated Connectors are designed for low-cost installations, making them an essential choice for building professionals and knowledgeable homeowners. With optional wire entry from either side, these connectors offer flexibility to accommodate various installation needs. Crafted from durable 6061-T6 Aluminum, they are dual-rated for use with both copper and aluminum wires, ensuring versatility in application. The rugged, high-dielectric rubber/vinyl coating provides exceptional insulation and protection, while the pre-filled oxide inhibitor enhances longevity and performance. Each connector is marked with the maximum wire size, simplifying identification during installation. They allow for easy re-entry, facilitating changes, inspections, or troubleshooting without hassle. Designed to operate within a temperature range of –49°F to 194°F (–45° to 90°C), these connectors are ANSI C119.4 and cULus 486b listed through 750MCM, ensuring compliance with industry standards. With a rating for use with 600 volts and cables up to 194°F (90°C), Morris 97118 connectors meet the demands of indoor applications effectively. Dimensions include a height of 2.22 inches, length of 2.20 inches, and width of 2.41 inches, all while accommodating wire ranges from 250 to 6. Trust Morris Products for reliable and efficient connection solutions.
2 Conductor Dual Entry Insulated Connectors for low cost installations.
Al9cu Dual Rating: AL9CU Dual Rated
Allen Hex: 5/16"
Color: Black
Connector Type: DualEntry
Country of Origin: India
Description: Black Insulated 2 Conductor Dual Entry Splice 2 Set Screws 250 - 6
Height: 2.22"
Insulation Type: Rubber
Length: 2.20"
Material: 6061-T6 Aluminum
Maximum Voltage: 600
Mfg Standard: UL 486B
Number of Positions: 2
Temperature Rating: -49oF to 194oF (-45o to 90oC)
Type: Black 2 Conductor Dual Entry Splice
Ul Listing: cULus
Upc: 601986971188
Warning: Cancer and Reproductive Harm
Width: 2.41"
Wire Range: 250 - 6
Wire Size: 250 - 6
