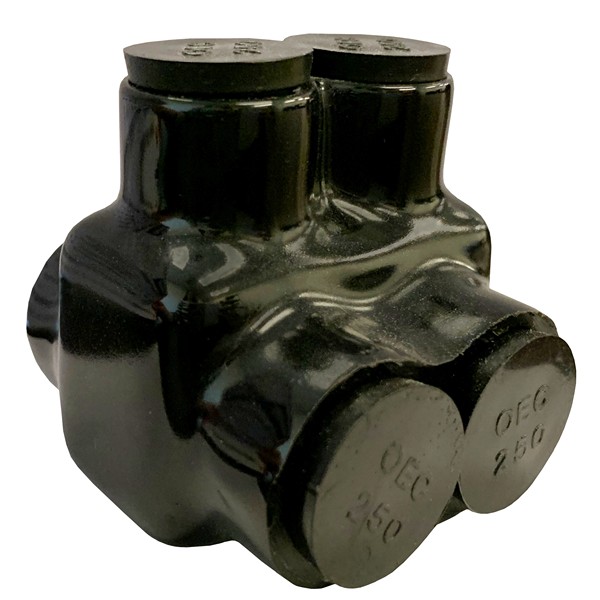

Morris 97120 2 Conductor Dual Entry Insulated Connectors are designed for low-cost installations without compromising on quality. These connectors offer the convenience of optional wire entry from either side, making them versatile for various applications. Constructed from durable 6061-T6 aluminum, the CU9AL dual-rated connectors are suitable for both copper and aluminum wires, ensuring compatibility across different wiring systems. The rugged high-dielectric rubber/vinyl coating provides essential insulation, while the pre-filled oxide inhibitor enhances performance by preventing corrosion. Easy access for changes, inspection, or troubleshooting is facilitated by the design, which allows for straightforward re-entry. Each plug is clearly marked with the maximum wire size, streamlining identification during installation. Rated for indoor use only, these connectors operate efficiently within a temperature range of –49°F to 194°F (–45° to 90°C) and can handle up to 600 volts. They are ANSI C119.4 and cULus 486b listed for sizes up to 750MCM, ensuring compliance with industry standards. With a wire range of 350 to 6, the Morris 97120 connectors are an ideal choice for professionals seeking reliable and efficient solutions for their electrical needs.
2 Conductor Dual Entry Insulated Connectors for low cost installations.
Al9cu Dual Rating: AL9CU Dual Rated
Allen Hex: 5/16"
Color: Black
Connector Type: DualEntry
Country of Origin: India
Description: Black Insulated 2 Conductor Dual Entry Splice 2 Set Screws 350 - 6
Height: 2.62"
Insulation Type: Rubber
Length: 2.60"
Material: 6061-T6 Aluminum
Maximum Voltage: 600
Mfg Standard: UL 486B
Number of Positions: 2
Temperature Rating: -49oF to 194oF (-45o to 90oC)
Type: Black 2 Conductor Dual Entry Splice
Ul Listing: cULus
Upc: 601986971201
Warning: Cancer and Reproductive Harm
Width: 2.8"
Wire Range: 350 - 6
Wire Size: 350 - 6
