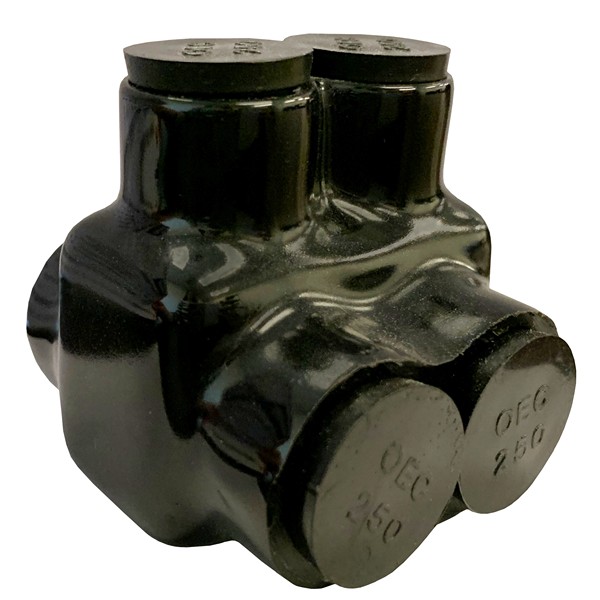

Morris 97121 2 Conductor Dual Entry Insulated Connectors are designed for low-cost installations, delivering reliability and ease of use for your electrical projects. With optional wire entry from either side, these connectors offer flexibility in application, making them suitable for various setups. Constructed from 6061-T6 Aluminum and rated for use with both copper and aluminum wires, the dual-rated connectors ensure compatibility across your electrical systems. The rugged high-dielectric rubber/vinyl coating provides added insulation and protection, while the pre-filled oxide inhibitor enhances longevity and performance. Maintenance is a breeze with easy re-entry features, allowing for quick changes, inspections, or troubleshooting as needed. Each plug is clearly marked with the maximum wire size for effortless identification, streamlining the installation process. Morris 97121 connectors operate within a temperature range of –49°F to 194°F (–45°C to 90°C) and are cULus 486b listed through 750MCM, ensuring they meet industry standards for safety and reliability. With a voltage rating of 600 volts and UL/CSA certification, these connectors are ideal for indoor use and are capable of handling wire sizes from 6 to 500 MCM. Invest in the Morris 97121 connectors for a dependable solution that supports your electrical needs effectively.
2 Conductor Dual Entry Insulated Connectors for low cost installations.
Al9cu Dual Rating: AL9CU Dual Rated
Allen Hex: 3/8"
Color: Black
Connector Type: DualEntry
Country of Origin: India
Description: Black Insulated 2 Conductor Dual Entry Splice 2 Set Screws 500 - 6
Height: 3.04"
Insulation Type: Rubber
Length: 2.88"
Material: 6061-T6 Aluminum
Maximum Voltage: 600
Mfg Standard: UL 486B
Number of Positions: 2
Temperature Rating: -49oF to 194oF (-45o to 90oC)
Type: Black 2 Conductor Dual Entry Splice
Ul Listing: cULus
Upc: 601986971218
Warning: Cancer and Reproductive Harm
Width: 3.14"
Wire Range: 500 - 6
Wire Size: 500 - 6
