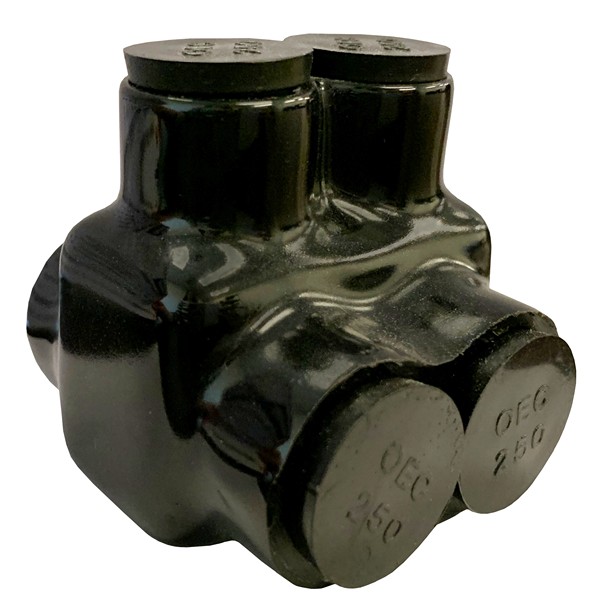

Morris 97122 2 Conductor Dual Entry Insulated Connectors provide an economical solution for reliable electrical connections in various installations. Designed for versatility, these connectors allow optional wire entry from either side, accommodating different wiring configurations. Constructed from 6061-T6 aluminum, they are dual rated for use with both copper and aluminum wires, ensuring compatibility across a range of applications. The rugged high-dielectric rubber/vinyl coating enhances durability while pre-filled oxide inhibitor protects against corrosion, extending the life of your connections. The easy re-entry feature simplifies changes, inspections, or troubleshooting tasks, making maintenance less of a chore. Each plug is clearly marked with the maximum wire size, facilitating quick identification and reducing installation errors. With a temperature range of –49°F to 194°F (–45° to 90°C) and rated for 600 volts, these connectors are suitable for indoor use only. They meet ANSI C119.4 and cULus 486b standards through 750MCM, alongside UL/CSA certification, ensuring compliance with industry regulations. The dimensions of the connector are 3.25 inches in height, 2.98 inches in length, and 3.38 inches in width, accommodating a wire range of 600 - 250. Choose the Morris 97122 connectors for a dependable, efficient electrical solution.
2 Conductor Dual Entry Insulated Connectors for low cost installations.
Al9cu Dual Rating: AL9CU Dual Rated
Allen Hex: 5/16"
Color: Black
Connector Type: DualEntry
Country of Origin: India
Description: Black Insulated 2 Conductor Dual Entry Splice 2 Set Screws 600 - 250
Height: 3.25"
Insulation Type: Rubber
Length: 2.98"
Material: 6061-T6 Aluminum
Maximum Voltage: 600
Mfg Standard: UL 486B
Number of Positions: 2
Temperature Rating: -49oF to 194oF (-45o to 90oC)
Type: Black 2 Conductor Dual Entry Splice
Ul Listing: cULus
Upc: 601986971225
Warning: Cancer and Reproductive Harm
Width: 3.38"
Wire Range: 600 - 250
Wire Size: 600 - 250
