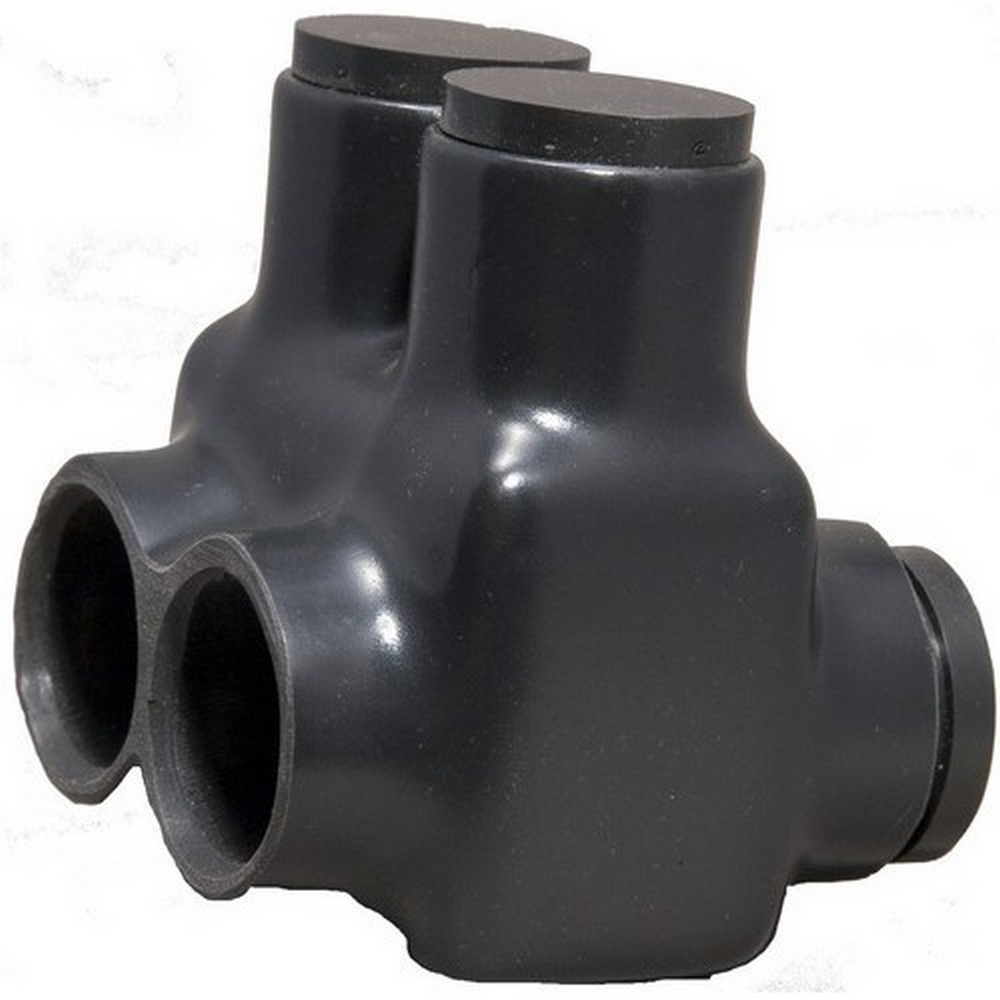

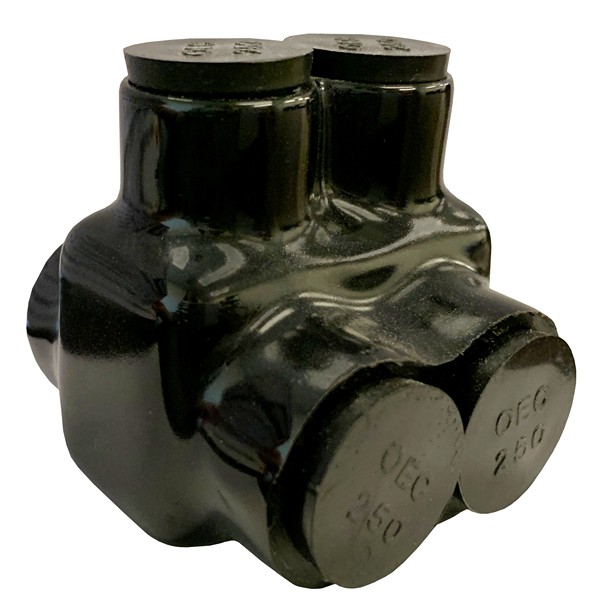

Morris 97124 Dual Entry Insulated Connectors for Low-Cost Installations

Your Price: $105.81

Morris 97124 Dual Entry Insulated Connectors offer versatile, durable connections for copper and aluminum wires, ensuring reliable performance in low-cost installations.

Part Number : MOR_97124

Availability: 198 In Stock

Quantity

Description

Morris 97124 Dual Entry Insulated Connectors for Low-Cost Installations

Morris 97124 2 Conductor

2 Conductor Dual Entry Insulated Connectors for low cost installations.

One wire per terminal
UL/CSA Certified through 750MCM size
Pre-Filled with Oxide Inhibitor
Indoor Use Only
ANSI C119.4 & cULus 486b Listed thru 750MCM
Rated for use with 194°F(90°C) Cables
Insulated Connector has rugged high-dielectric Rubber/Vinyl Coating
Temperature Range of –49°F to 194°F (–45° to 90°C)
600 Volt
Plugs Marked with Connector Max Wire Size for easy identification
Easy Re-entry for Changes, Inspection or Troubleshooting
Dual Entry Insulated Connector is 6061-T6 Aluminum CU9AL Dual Rated for use with Copper and/or Aluminum wires
Dimension Measurements = Inches
Optional wire entry from either side
UV-Resistant Plastisol Insulation

Attributes

Al9cu Dual Rating: AL9CU Dual Rated

Allen Hex: 3/8"

Color: Black

Connector Type: DualEntry

Country of Origin: India

Description: Black Insulated 2 Conductor Dual Entry Splice 2 Set Screws 750 - 250

Height: 3.52"

Insulation Type: Rubber

Length: 3.33"

Material: 6061-T6 Aluminum

Maximum Voltage: 600

Mfg Standard: UL 486B

Number of Positions: 2

Temperature Rating: -49oF to 194oF (-45o to 90oC)

Type: Black 2 Conductor Dual Entry Splice

Ul Listing: cULus

Upc: 601986971249

Warning: Cancer and Reproductive Harm

Width: 3.44"

Wire Range: 750 - 250

Wire Size: 750 - 250
