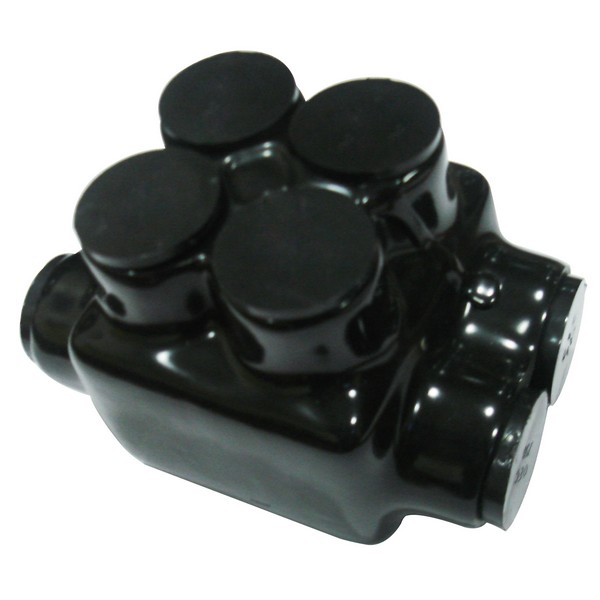

Morris 97125 2 Conductor 4 Set Screw Dual Entry Insulated Connectors provide a reliable solution for low-cost installations in various electrical applications. These dual entry connectors are made from durable 6061-T6 aluminum, making them compatible with both copper and aluminum wires, thanks to their dual-rated design. Featuring a robust, high-dielectric rubber/vinyl coating, these connectors ensure safety and longevity. With optional wire entry from either side, the Morris 97125 connectors facilitate easy installation and re-entry for changes, inspection, or troubleshooting. Each plug is pre-filled with an oxide inhibitor to prevent corrosion, and they are clearly marked with the maximum wire size for quick identification. Rated for indoor use only, these connectors operate efficiently within a temperature range of -49°F to 194°F (-45° to 90°C) and are compliant with ANSI C119.4 and cULus 486b standards for use up to 750MCM. Measuring 3.52" in height, 3.33" in length, and 4.50" in width, these connectors accommodate wire sizes ranging from 250 to 750. Additionally, they are rated for 600 volts, ensuring reliable performance in your electrical projects. Invest in the Morris 97125 connectors for a safe and effective wiring solution.
2 Conductor 4 Set Screw Dual Entry Insulated Connectors for low cost installations.
Al9cu Dual Rating: AL9CU Dual Rated
Allen Hex: 3/8"
Color: Black
Connector Type: DualEntry
Country of Origin: India
Description: Black Insulated 2 Conductor Dual Entry Splice Dual Set Screw 750 - 250
Height: 3.52"
Insulation Type: Rubber
Length: 3.33"
Material: 6061-T6 Aluminum
Maximum Voltage: 600
Mfg Standard: UL 486B
Number of Positions: 2
Temperature Rating: -49oF to 194oF (-45o to 90oC)
Type: Black 2 Conductor Dual Entry Splice
Ul Listing: cULus
Upc: 601986971256
Warning: Cancer and Reproductive Harm
Width: 4.50"
Wire Range: 750 - 250
Wire Size: 750-250
