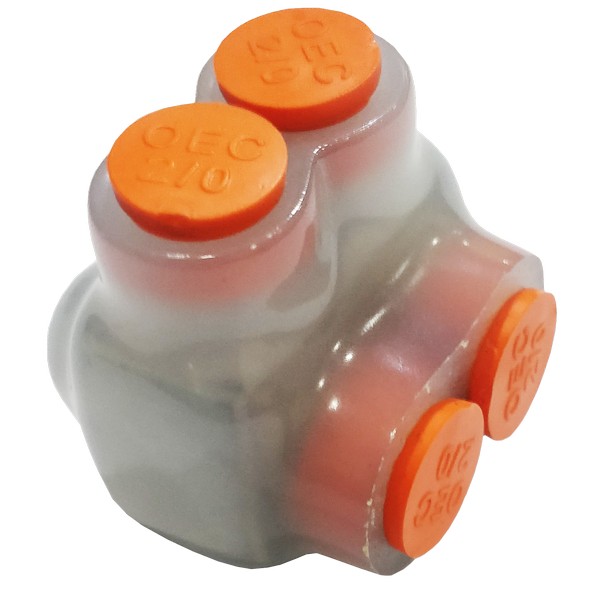

Morris 97324 Clear Multi Conductor Insulated Connector for Accurate Terminations

Morris 97324 Clear Multi Conductor Insulated Connector ensures that your electrical terminations are accurate and reliable every time. Featuring clear insulation, this connector allows for visual confirmation that conductors are properly inserted, enhancing the safety and efficiency of your installations. Constructed from durable 6061-T6 aluminum, the CU9AL dual-rated connector accommodates both copper and aluminum wire, making it versatile for various applications. The single-piece clear molded insulation is coated in a rugged, high-dielectric plastisol that offers resistance to chemicals and abrasion, ensuring longevity in demanding environments. Pre-filled with an oxide inhibitor, the connector is designed for easy re-entry, facilitating changes, inspections, or troubleshooting without hassle. Removable plugs are conveniently marked with wire sizes, streamlining installation processes. With a temperature range of –49°F to 194°F (–45°C to 90°C) and a voltage rating of 600 volts, this connector is reliable for indoor use only. Its PVC insulation minimizes the risk and cost of power outages caused by improper manual connections, ensuring peace of mind. Compliant with ANSI C119.4 and cULus 486b standards, the Morris 97324 is a smart choice for professionals seeking a high-quality, efficient insulated connector.

With our Clear Multi Conductor Insulated Connector, you'll see your termination is right every time

• Wire Entry from Either Side of Clear Insulated Connector
• Clear Insulation allows Visual Confirmation that conductor is properly inserted
• Indoor Use Only
• Easy Re-Entry for Changes, Inspection or Troubleshooting
• PVC insulation reduces the likelihood & cost of power outages caused by improper or inconsistent insulated connections done manually in the field
• Rated for use with 194°F(90°C) Cables
• Insulated Aluminum Connector eliminates the need for time consuming manual taping, reducing installation time
• One Wire Per Terminal
• Removable Plugs marked with wire size provide easy access for installation.
• Single Piece Clear Molded Insulation with Rugged High-Dielectric Plastisol Dipped Coating is chemical and abrasion resistant
• Multi-Port 6061-T6 Aluminum Connector - CU9AL Dual Rated for use with Copper and/or Aluminum wire
• Pre-filled with Oxide Inhibitor
• 600 Volt
• Dimension Measurements = Inches
• Temperature range of –49°F to 194°F (–45° to 90°C)
• ANSI C119.4 & cULus 486b Listed
