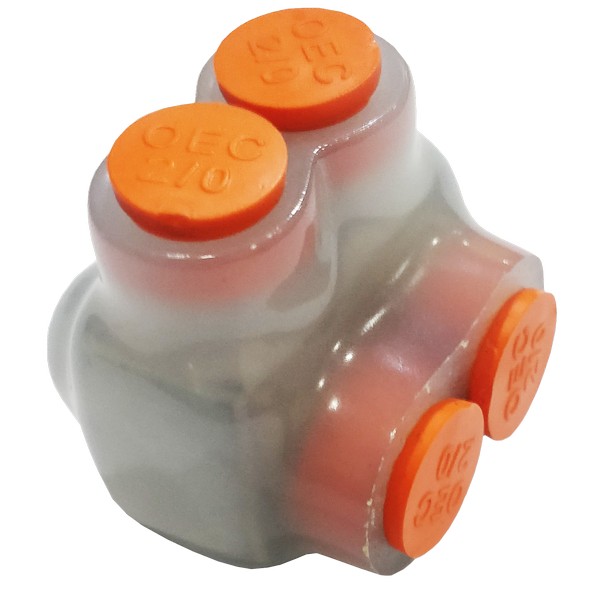

Morris 97326 Clear Multi Conductor Insulated Connector ensures that your terminations are always correct and reliable. This dual-rated connector is designed to accommodate both copper and aluminum wire, featuring a robust construction of 6061-T6 aluminum. The clear insulation allows for visual confirmation that conductors are properly inserted, reducing the potential for errors during installation. Built with a single-piece molded insulation and a rugged high-dielectric Plastisol dipped coating, this connector is resistant to chemicals and abrasion, making it ideal for demanding environments. Pre-filled with an oxide inhibitor, it maintains optimal performance and longevity. The easy re-entry feature simplifies changes, inspections, or troubleshooting, while removable plugs marked with wire sizes facilitate straightforward installation. With a temperature range of –49°F to 194°F, this connector is versatile for various applications, although it's rated for indoor use only. It supports wire entry from either side, streamlining the installation process and eliminating the need for manual taping, ultimately saving time. The Morris 97326 meets ANSI C119.4 and cULus 486b standards, ensuring safety and reliability for your electrical projects. With dimensions of 1.15" in length, 1.20" in width, and a height of 1.42", it is compact yet effective for a wire range of 2-14.
With our Clear Multi Conductor Insulated Connector, you'll see your termination is right every time
Al9cu Dual Rating: AL9CU Dual Rated
Color: Clear
Connector Type: Single Entry
Country of Origin: India
Description: Clear Insulated Multi-Cable Connector - Single Entry 2 Port 2-14
Height: 1.42"
Insulation Type: Rubber
Length: 1.15"
Material: 6061-T6 Aluminum
Maximum Voltage: 600
Mfg Standard: UL 486B
No. of Ports: 2
Temperature Rating: -49oF to 194oF (-45o to 90oC)
Type: Clear Insulated Multi-Cable Connector - Single Side Entry
Ul Listing: cULus
Upc: 601986973267
Warning: Cancer and Reproductive Harm
Width: 1.20"
Wire Range: 2-14
Wire Size: 2-14
