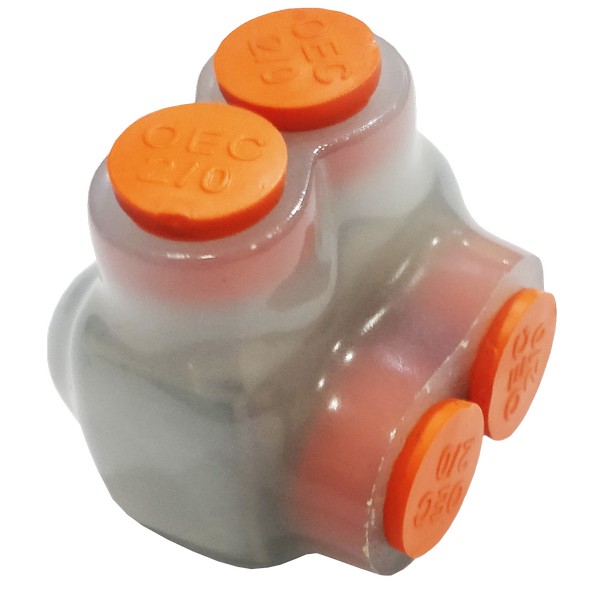

Morris 97330 Clear Multi Conductor Insulated Connector provides a reliable and efficient solution for your wiring needs. With its innovative clear insulation, you can visually confirm that each conductor is properly inserted, ensuring peace of mind during installation. This multi-port connector, crafted from durable 6061-T6 aluminum, is dual rated for use with both copper and aluminum wire, making it versatile for various applications. Engineered with a rugged high-dielectric plastisol dipped coating, the single-piece molded insulation is both chemical and abrasion resistant, designed to withstand tough environments. Pre-filled with oxide inhibitor, it enhances connection longevity, while easy re-entry allows for quick changes and inspections when needed. With wire entry from either side, installation is straightforward, and removable plugs marked with wire sizes simplify access. The connector supports a temperature range of –49°F to 194°F (–45° to 90°C) and is rated for 600 volts, making it ideal for indoor use. This unit accommodates wire sizes from 2/0 to 6, ensuring compatibility with a wide range of projects. By eliminating the need for time-consuming manual taping, the Morris 97330 reduces installation time and minimizes the risk of costly power outages caused by improper connections. ANSI C119.4 and cULus 486b listed, it’s a trusted choice for professionals.
With our Clear Multi Conductor Insulated Connector, you'll see your termination is right every time
Al9cu Dual Rating: AL9CU Dual Rated
Color: Clear
Connector Type: Single Entry
Country of Origin: India
Description: Clear Insulated Multi-Cable Connector - Single Entry 2 Port 2/0-6
Height: 1.93"
Insulation Type: Rubber
Length: 1.69"
Material: 6061-T6 Aluminum
Maximum Voltage: 600
Mfg Standard: UL 486B
No. of Ports: 2
Temperature Rating: -49oF to 194oF (-45o to 90oC)
Type: Clear Insulated Multi-Cable Connector - Single Side Entry
Ul Listing: cULus
Upc: 601986973304
Warning: Cancer and Reproductive Harm
Width: 1.80"
Wire Range: 2/0-6
Wire Size: 2/0-6
