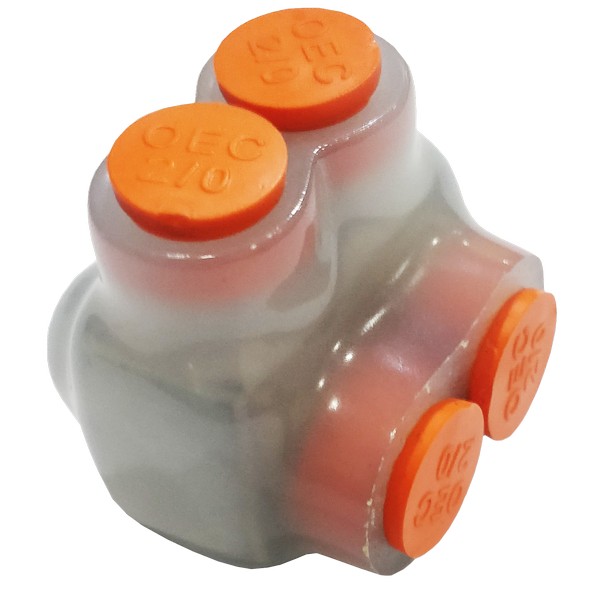

Morris 97331 Clear Multi Conductor Insulated Connector provides unparalleled assurance that your terminations are accurate every time. The clear insulation allows for visual confirmation that conductors are properly inserted, streamlining the installation process. This multi-port connector is crafted from rugged 6061-T6 aluminum, dual-rated for use with both copper and aluminum wire, making it versatile for various applications. Designed with practicality in mind, the single-piece clear molded insulation features a high-dielectric plastisol dipped coating that is resistant to chemicals and abrasion. Pre-filled with an oxide inhibitor, this connector ensures longevity and reliability. The easy re-entry feature allows for quick changes, inspections, or troubleshooting, while removable plugs marked with wire sizes simplify installation. With a temperature range of –49°F to 194°F and capable of handling up to 600 volts, the Morris 97331 is rated for use with cables up to 194°F (90°C). The insulated aluminum design eliminates the need for time-consuming manual taping, reducing installation time significantly. Ideal for indoor use, this connector minimizes the risk of power outages due to improper or inconsistent connections. ANSI C119.4 and cULus 486b listed, it meets high safety standards for your peace of mind.
With our Clear Multi Conductor Insulated Connector, you'll see your termination is right every time
Al9cu Dual Rating: AL9CU Dual Rated
Color: Clear
Connector Type: Single Entry
Country of Origin: India
Description: Clear Insulated Multi-Cable Connector - Single Entry 2 Port 3/0-6
Height: 1.99"
Insulation Type: Rubber
Length: 2.00"
Material: 6061-T6 Aluminum
Maximum Voltage: 600
Mfg Standard: UL 486B
No. of Ports: 2
Temperature Rating: -49oF to 194oF (-45o to 90oC)
Type: Clear Insulated Multi-Cable Connector - Single Side Entry
Ul Listing: cULus
Upc: 601986973311
Warning: Cancer and Reproductive Harm
Width: 1.90"
Wire Range: 3/0-6
Wire Size: 3/0-6
