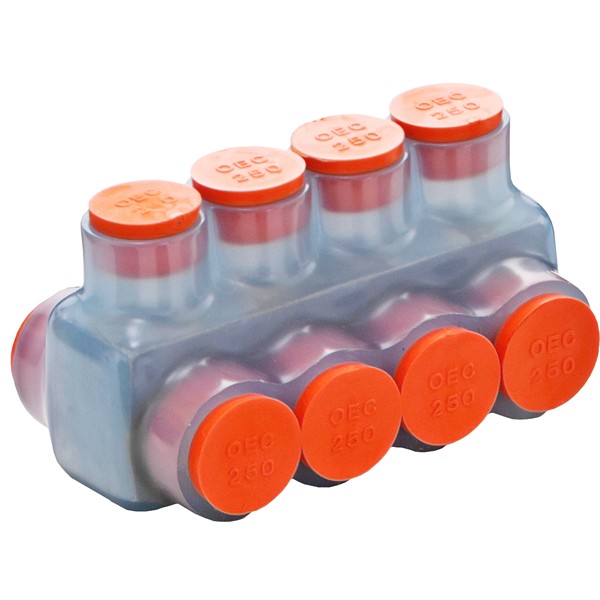

Morris 97334 Clear Multi Conductor Insulated Connector for Accurate Termination

Morris 97334 Clear Multi Conductor Insulated Connector offers reliable and efficient termination solutions for your wiring needs. Featuring clear insulation, this connector allows for visual confirmation that conductors are properly inserted, ensuring peace of mind during installations. The multi-port design is crafted from durable 6061-T6 aluminum, dual-rated for compatibility with both copper and aluminum wire. Constructed with a single-piece clear molded insulation and rugged high-dielectric plastisol dipped coating, this connector is resistant to chemicals and abrasion, making it ideal for various environments. Pre-filled with an oxide inhibitor, it promotes longevity and reliable performance. The easy re-entry feature allows for straightforward changes, inspections, or troubleshooting, while removable plugs, marked with wire sizes, simplify installation. Designed for indoor use only, the Morris 97334 operates within a temperature range of -49°F to 194°F (-45°C to 90°C) and can accommodate wire ranges from 2-14. With a voltage rating of 600 volts and ANSI C119.4 & cULus 486b listings, this connector enhances safety and efficiency, reducing the risk of power outages due to improper connections. Its dimensions of 1.45" height, 2.02" length, and 1.21" width make it a compact choice for any professional or knowledgeable homeowner.

With our Clear Multi Conductor Insulated Connector, you'll see your termination is right every time

• Wire Entry from Either Side of Clear Insulated Connector
• Clear Insulation allows Visual Confirmation that conductor is properly inserted
• Indoor Use Only
• Easy Re-Entry for Changes, Inspection or Troubleshooting
• PVC insulation reduces the likelihood & cost of power outages caused by improper or inconsistent insulated connections done manually in the field
• Rated for use with 194°F(90°C) Cables
• Insulated Aluminum Connector eliminates the need for time consuming manual taping, reducing installation time
• One Wire Per Terminal
• Removable Plugs marked with wire size provide easy access for installation.
• Single Piece Clear Molded Insulation with Rugged High-Dielectric Plastisol Dipped Coating is chemical and abrasion resistant
• Multi-Port 6061-T6 Aluminum Connector - CU9AL Dual Rated for use with Copper and/or Aluminum wire
• Pre-filled with Oxide Inhibitor
• 600 Volt
• Dimension Measurements = Inches
• Temperature range of –49°F to 194°F (–45° to 90°C)
• ANSI C119.4 & cULus 486b Listed
