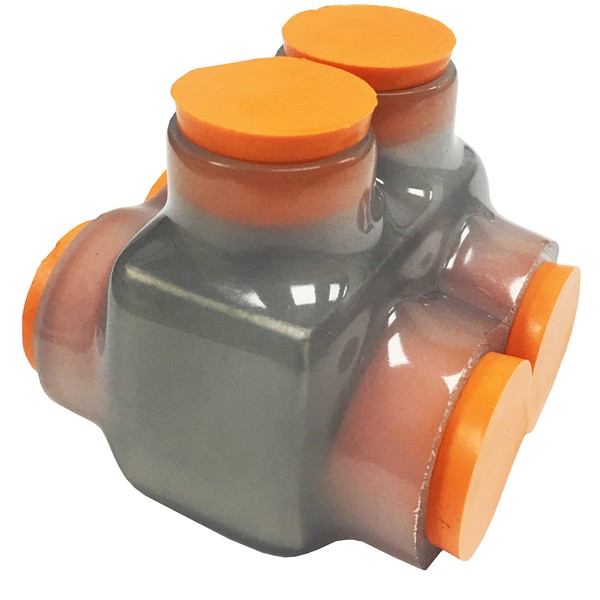

Morris 97352 Clear Multi Conductor Insulated Connector for Accurate Termination

Morris 97352 Clear Multi Conductor Insulated Connector ensures a reliable termination every time, thanks to its innovative design. The clear insulation provides visual confirmation that the conductor is properly inserted, allowing for quick and accurate connections. Made from dual-rated 6061-T6 aluminum, this connector accommodates both copper and aluminum wire, making it versatile for various applications. The single-piece molded insulation features a rugged high-dielectric plastisol dipped coating, which is both chemical and abrasion-resistant, ensuring durability in demanding environments. Pre-filled with an oxide inhibitor, these connectors promote longevity and performance, while the easy re-entry design allows for seamless changes, inspections, or troubleshooting when necessary. With removable plugs marked by wire size, installation becomes straightforward, enhancing efficiency on the job site. The Morris 97352 can handle a temperature range of –49°F to 194°F and supports wire sizes from 2/0 to 6, making it suitable for a variety of indoor applications. Rated for 600 volts and compliant with ANSI C119.4 and cULus 486b listings, this connector significantly reduces the risk of power outages due to improper connections. Elevate your wiring projects with the Morris 97352, a reliable choice for electrical professionals.

With our Clear Multi Conductor Insulated Connector, you'll see your termination is right every time

• Wire Entry from Either Side of Clear Insulated Connector
• Clear Insulation allows Visual Confirmation that conductor is properly inserted
• Indoor Use Only
• Easy Re-Entry for Changes, Inspection or Troubleshooting
• PVC insulation reduces the likelihood & cost of power outages caused by improper or inconsistent insulated connections done manually in the field
• Rated for use with 194°F(90°C) Cables
• Insulated Aluminum Connector eliminates the need for time consuming manual taping, reducing installation time
• One Wire Per Terminal
• Removable Plugs marked with wire size provide easy access for installation.
• Single Piece Clear Molded Insulation with Rugged High-Dielectric Plastisol Dipped Coating is chemical and abrasion resistant
• Multi-Port 6061-T6 Aluminum Connector - CU9AL Dual Rated for use with Copper and/or Aluminum wire
• Pre-filled with Oxide Inhibitor
• 600 Volt
• Dimension Measurements = Inches
• Temperature range of –49°F to 194°F (–45° to 90°C)
• ANSI C119.4 & cULus 486b Listed
