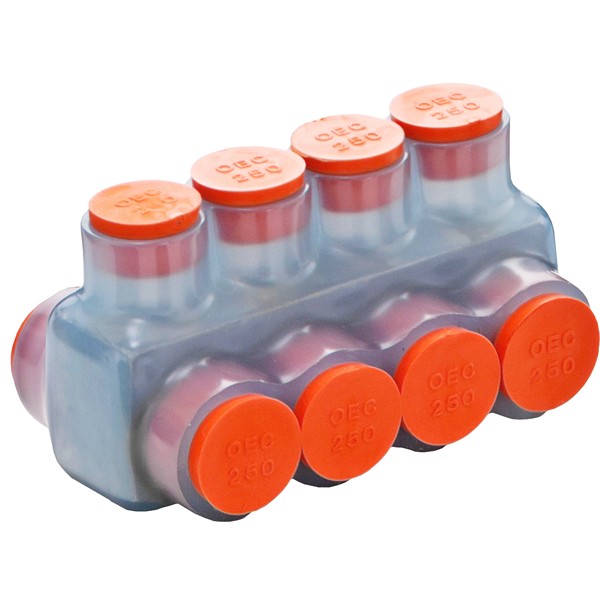

Morris 97396 Clear Multi Conductor Insulated Connector for Accurate Termination

Morris 97396 Clear Multi Conductor Insulated Connector ensures reliable electrical terminations every time. Designed with clear insulation, this connector allows for visual confirmation that conductors are properly inserted, enhancing installation confidence. The multi-port design features a robust 6061-T6 aluminum construction, dual-rated for compatibility with both copper and aluminum wire. This connector is engineered with a single-piece clear molded insulation that is coated with a rugged, high-dielectric plastisol, offering excellent chemical and abrasion resistance. Pre-filled with an oxide inhibitor, it provides enhanced protection against corrosion, ensuring long-lasting performance. Additionally, the easy re-entry feature simplifies changes, inspections, or troubleshooting, while removable plugs marked with wire sizes facilitate straightforward installation. With a temperature range of -49°F to 194°F, this connector is suitable for various indoor applications, rated for use with cables up to 90°C. The insulated aluminum design eliminates the need for time-consuming manual taping, significantly reducing installation time and minimizing the risks of power outages caused by inconsistent connections. Compliant with ANSI C119.4 and cULus 486b standards, the Morris 97396 connector is a dependable choice for building professionals seeking quality and efficiency in their electrical projects.

With our Clear Multi Conductor Insulated Connector, you'll see your termination is right every time

• Wire Entry from Either Side of Clear Insulated Connector
• Clear Insulation allows Visual Confirmation that conductor is properly inserted
• Indoor Use Only
• Easy Re-Entry for Changes, Inspection or Troubleshooting
• PVC insulation reduces the likelihood & cost of power outages caused by improper or inconsistent insulated connections done manually in the field
• Rated for use with 194°F(90°C) Cables
• Insulated Aluminum Connector eliminates the need for time consuming manual taping, reducing installation time
• One Wire Per Terminal
• Removable Plugs marked with wire size provide easy access for installation.
• Single Piece Clear Molded Insulation with Rugged High-Dielectric Plastisol Dipped Coating is chemical and abrasion resistant
• Multi-Port 6061-T6 Aluminum Connector - CU9AL Dual Rated for use with Copper and/or Aluminum wire
• Pre-filled with Oxide Inhibitor
• 600 Volt
• Dimension Measurements = Inches
• Temperature range of –49°F to 194°F (–45° to 90°C)
• ANSI C119.4 & cULus 486b Listed
