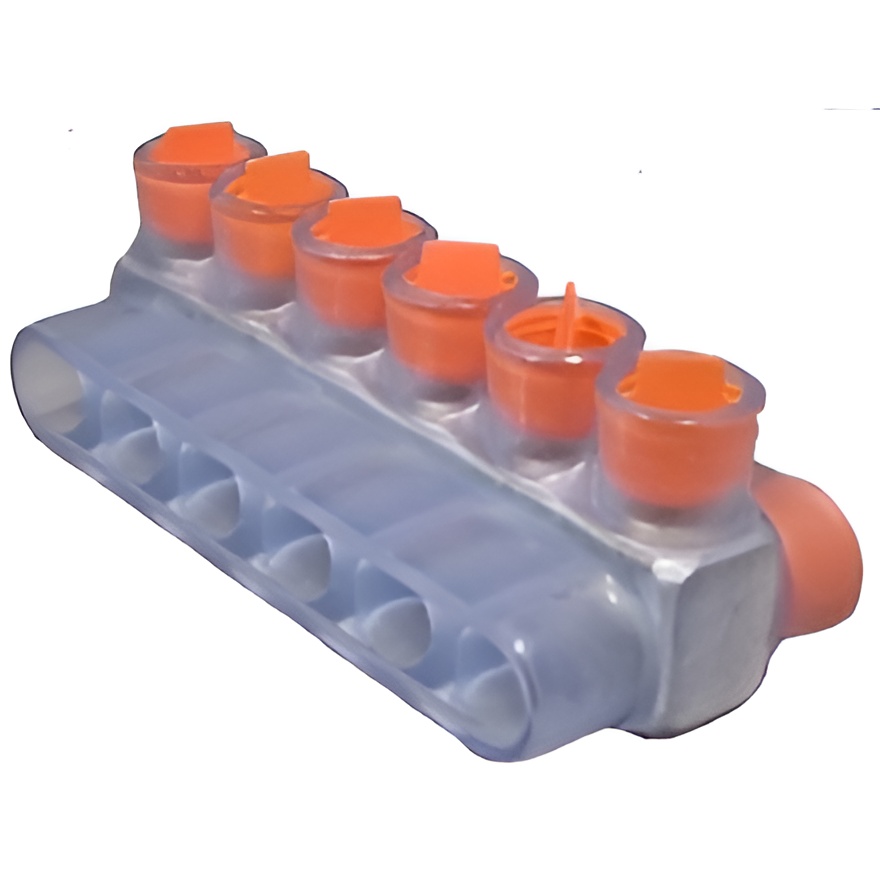

Morris 97400 Clear Multi Conductor Insulated Connector for Accurate Termination

Morris 97400 Clear Multi Conductor Insulated Connector offers a reliable solution for ensuring proper terminations every time. The clear insulation allows for visual confirmation that conductors are correctly inserted, eliminating guesswork during installation. Crafted from durable 6061-T6 aluminum, this dual-rated connector is compatible with both copper and aluminum wire, accommodating a wide range of applications. The single-piece clear molded insulation features a rugged, high-dielectric Plastisol dipped coating that is resistant to chemicals and abrasion, enhancing longevity in demanding environments. Pre-filled with an oxide inhibitor, the connector provides added protection against corrosion. Designed for easy re-entry, it allows for quick changes, inspections, or troubleshooting without hassle. With a temperature range of –49°F to 194°F (–45° to 90°C), this connector is suitable for various indoor environments. It includes removable plugs marked with wire sizes for straightforward installation and accommodates one wire per terminal, supporting wire ranges from 250 to 6. The Morris 97400 is ANSI C119.4 and cULus 486b listed, ensuring compliance with industry standards. Reducing the need for manual taping, this insulated aluminum connector minimizes installation time, making it an essential choice for building professionals and knowledgeable homeowners alike.

With our Clear Multi Conductor Insulated Connector, you'll see your termination is right every time

• Wire Entry from Either Side of Clear Insulated Connector
• Clear Insulation allows Visual Confirmation that conductor is properly inserted
• Indoor Use Only
• Easy Re-Entry for Changes, Inspection or Troubleshooting
• PVC insulation reduces the likelihood & cost of power outages caused by improper or inconsistent insulated connections done manually in the field
• Rated for use with 194°F(90°C) Cables
• Insulated Aluminum Connector eliminates the need for time consuming manual taping, reducing installation time
• One Wire Per Terminal
• Removable Plugs marked with wire size provide easy access for installation.
• Single Piece Clear Molded Insulation with Rugged High-Dielectric Plastisol Dipped Coating is chemical and abrasion resistant
• Multi-Port 6061-T6 Aluminum Connector - CU9AL Dual Rated for use with Copper and/or Aluminum wire
• Pre-filled with Oxide Inhibitor
• 600 Volt
• Dimension Measurements = Inches
• Temperature range of –49°F to 194°F (–45° to 90°C)
• ANSI C119.4 & cULus 486b Listed

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
