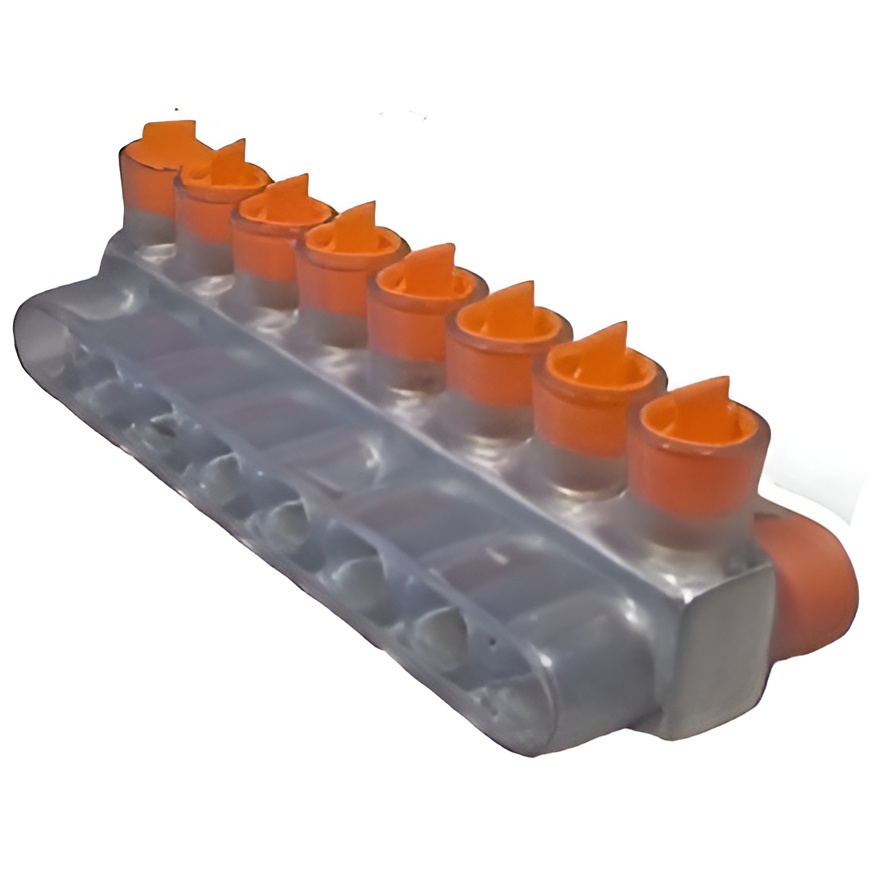

Morris 97402 Clear Multi Conductor Insulated Connector provides the assurance that your terminations are accurate every time. Featuring a clear insulation design, this connector allows for visual confirmation that conductors are properly inserted, reducing the risk of installation errors. Constructed from durable 6061-T6 aluminum, it is dual-rated for use with both copper and aluminum wire. The connector boasts a single-piece clear molded insulation with a rugged, high-dielectric Plastisol dipped coating that is resistant to chemicals and abrasion. It comes pre-filled with an oxide inhibitor, ensuring optimal performance. With easy re-entry for modifications or inspections, and removable plugs marked by wire size, installation and troubleshooting are simplified. Designed for indoor use only, the Morris 97402 operates effectively within a temperature range of -49°F to 194°F (-45°C to 90°C) and supports 600 volts. Each terminal accommodates one wire, while the PVC insulation minimizes the chances of costly power outages caused by improper connections. This connector is ANSI C119.4 and cULus 486b listed, making it a reliable choice for professionals seeking efficiency and safety in their electrical projects. Its dimensions are 2.49" in height, 6.83" in length, and 2.40" in width, with eight ports and a wire range of 250 - 6.
With our Clear Multi Conductor Insulated Connector, you'll see your termination is right every time
Al9cu Dual Rating: AL9CU Dual Rated
Color: Clear
Connector Type: Dual Entry
Country of Origin: India
Description: Clear Insulated Multi-Cable Connector - Dual Entry 8 Ports 250 - 6
Height: 2.49"
Insulation Type: Rubber
Length: 6.83"
Material: 6061-T6 Aluminum
Maximum Voltage: 600
Mfg Standard: UL 486B
No. of Ports: 8
Number of Positions: 8
Temperature Rating: -49oF to 194oF (-45o to 90oC)
Type: Clear Multi-Cable Connector - Dual Entry
Ul Listing: cULus
Upc: 601986974028
Warning: Cancer and Reproductive Harm
Width: 2.40"
Wire Range: 250 - 6
Wire Size: 250 - 6
