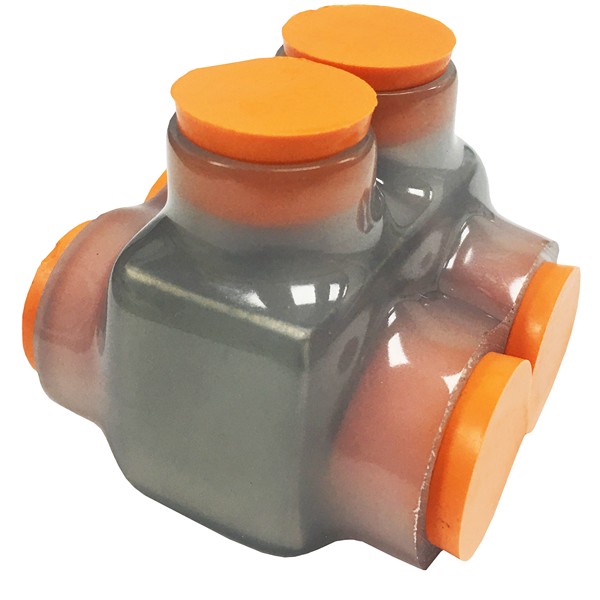

Morris 97412 Clear Multi Conductor Insulated Connector for Accurate Termination

Morris 97412 Clear Multi Conductor Insulated Connector ensures that your terminations are reliable and easy to confirm. Featuring clear insulation, this connector allows for visual verification that the conductor is properly inserted, providing peace of mind during installation. Constructed from durable 6061-T6 aluminum, it is dual-rated for compatibility with both copper and aluminum wire. The single-piece, clear molded insulation is coated with rugged, high-dielectric Plastisol, making it resistant to chemicals and abrasion. Pre-filled with an oxide inhibitor, the connector simplifies the process of inspection, changes, or troubleshooting with easy re-entry access. Removable plugs, marked with wire sizes, facilitate hassle-free installation. Designed for indoor use, the Morris 97412 is capable of handling a temperature range from –49°F to 194°F (-45° to 90°C), with a voltage rating of up to 600 volts. The PVC insulation minimizes the risk and cost of power outages due to improper connections, while the one wire per terminal design streamlines the installation process. ANSI C119.4 and cULus 486B listed, this connector accommodates wire ranges from 350 to 6, making it an essential tool for professionals seeking efficiency and reliability in electrical work.

With our Clear Multi Conductor Insulated Connector, you'll see your termination is right every time

• Wire Entry from Either Side of Clear Insulated Connector
• Clear Insulation allows Visual Confirmation that conductor is properly inserted
• Indoor Use Only
• Easy Re-Entry for Changes, Inspection or Troubleshooting
• PVC insulation reduces the likelihood & cost of power outages caused by improper or inconsistent insulated connections done manually in the field
• Rated for use with 194°F(90°C) Cables
• Insulated Aluminum Connector eliminates the need for time consuming manual taping, reducing installation time
• One Wire Per Terminal
• Removable Plugs marked with wire size provide easy access for installation.
• Single Piece Clear Molded Insulation with Rugged High-Dielectric Plastisol Dipped Coating is chemical and abrasion resistant
• Multi-Port 6061-T6 Aluminum Connector - CU9AL Dual Rated for use with Copper and/or Aluminum wire
• Pre-filled with Oxide Inhibitor
• 600 Volt
• Dimension Measurements = Inches
• Temperature range of –49°F to 194°F (–45° to 90°C)
• ANSI C119.4 & cULus 486b Listed
