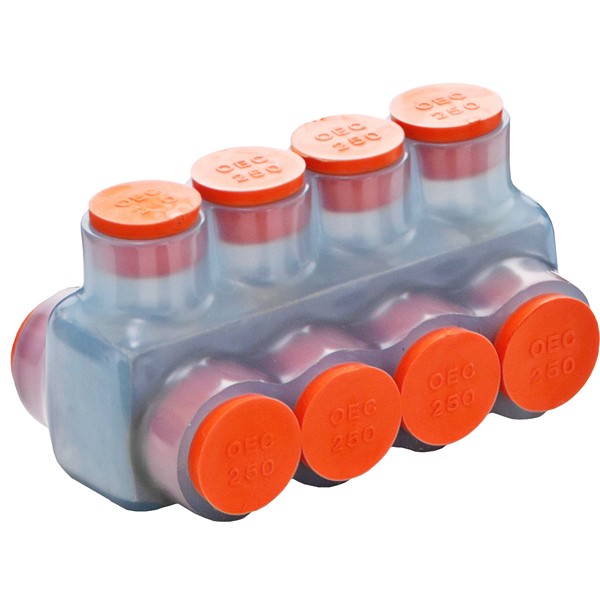

Morris 97416 Clear Multi Conductor Insulated Connector for Reliable Terminations

Morris 97416 Clear Multi Conductor Insulated Connector ensures reliable terminations with every use. Designed with clear insulation, this connector allows for visual confirmation that conductors are properly inserted, reducing the chances of errors during installation. Constructed from durable multi-port 6061-T6 aluminum, the CU9AL dual-rated connector is compatible with both copper and aluminum wire. This connector features a single-piece clear molded insulation that is rugged, chemically resistant, and abrasion-resistant due to its high-dielectric plastisol dipped coating. Pre-filled with an oxide inhibitor, it provides optimal conductivity and protection. The easy re-entry design facilitates changes, inspections, or troubleshooting without hassle. With a temperature range of –49°F to 194°F (–45° to 90°C), this insulated aluminum connector supports wire entry from either side, streamlining the installation process. It eliminates the need for time-consuming manual taping, significantly reducing installation time. Each terminal accommodates one wire, and removable plugs are conveniently marked with wire sizes for straightforward access. The Morris 97416 is ANSI C119.4 and cULus 486B listed, rated for 600 volts, and designed for indoor use only. Its dimensions (2.64" height, 2.75" width, and 3.85" length) make it an efficient choice for various applications.

With our Clear Multi Conductor Insulated Connector, you'll see your termination is right every time

• Wire Entry from Either Side of Clear Insulated Connector
• Clear Insulation allows Visual Confirmation that conductor is properly inserted
• Indoor Use Only
• Easy Re-Entry for Changes, Inspection or Troubleshooting
• PVC insulation reduces the likelihood & cost of power outages caused by improper or inconsistent insulated connections done manually in the field
• Rated for use with 194°F(90°C) Cables
• Insulated Aluminum Connector eliminates the need for time consuming manual taping, reducing installation time
• One Wire Per Terminal
• Removable Plugs marked with wire size provide easy access for installation.
• Single Piece Clear Molded Insulation with Rugged High-Dielectric Plastisol Dipped Coating is chemical and abrasion resistant
• Multi-Port 6061-T6 Aluminum Connector - CU9AL Dual Rated for use with Copper and/or Aluminum wire
• Pre-filled with Oxide Inhibitor
• 600 Volt
• Dimension Measurements = Inches
• Temperature range of –49°F to 194°F (–45° to 90°C)
• ANSI C119.4 & cULus 486b Listed
