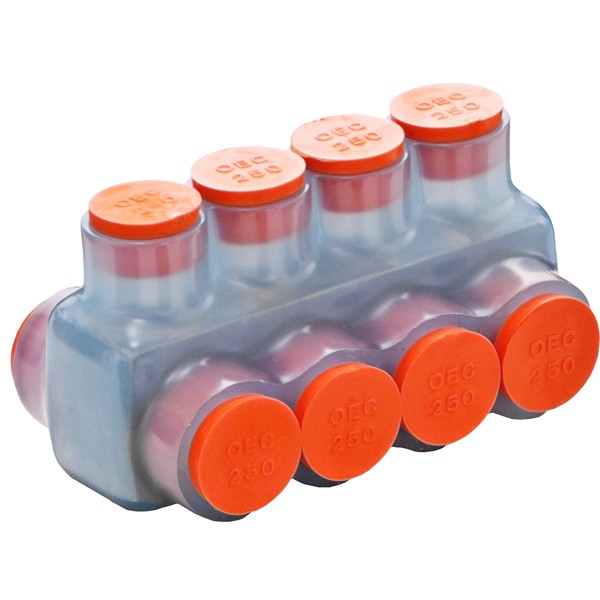

Morris 97426 Clear Multi Conductor Insulated Connector for Accurate Termination

Morris 97426 Clear Multi Conductor Insulated Connector delivers reliable performance for your electrical installations by ensuring that your terminations are always correct. The clear insulation allows for visual confirmation that conductors are properly inserted, providing peace of mind during installation. Made from multi-port 6061-T6 aluminum, this dual-rated connector is suitable for both copper and aluminum wire, giving you versatility for various applications. Designed with a single-piece clear molded insulation, the rugged high-dielectric plastisol dipped coating resists chemicals and abrasion, ensuring durability in demanding environments. Pre-filled with an oxide inhibitor, this connector also features easy re-entry for modifications, inspections, or troubleshooting. Removable plugs are conveniently marked with wire sizes, simplifying the installation process. Operating within a temperature range of –49°F to 194°F (–45° to 90°C), the Morris 97426 is rated for use with 600 Volt and 194°F (90°C) cables, making it ideal for indoor applications. With dimensions of 3.60" in height, 5.03" in length, and 3.85" in width, and a wire range accommodating sizes from 750 to 250, this connector is engineered for efficiency while reducing the likelihood of costly power outages associated with improper connections. ANSI C119.4 and cULus 486b listed, this product exemplifies quality and reliability.

With our Clear Multi Conductor Insulated Connector, you'll see your termination is right every time

• Wire Entry from Either Side of Clear Insulated Connector
• Clear Insulation allows Visual Confirmation that conductor is properly inserted
• Indoor Use Only
• Easy Re-Entry for Changes, Inspection or Troubleshooting
• PVC insulation reduces the likelihood & cost of power outages caused by improper or inconsistent insulated connections done manually in the field
• Rated for use with 194°F(90°C) Cables
• Insulated Aluminum Connector eliminates the need for time consuming manual taping, reducing installation time
• One Wire Per Terminal
• Removable Plugs marked with wire size provide easy access for installation.
• Single Piece Clear Molded Insulation with Rugged High-Dielectric Plastisol Dipped Coating is chemical and abrasion resistant
• Multi-Port 6061-T6 Aluminum Connector - CU9AL Dual Rated for use with Copper and/or Aluminum wire
• Pre-filled with Oxide Inhibitor
• 600 Volt
• Dimension Measurements = Inches
• Temperature range of –49°F to 194°F (–45° to 90°C)
• ANSI C119.4 & cULus 486b Listed
