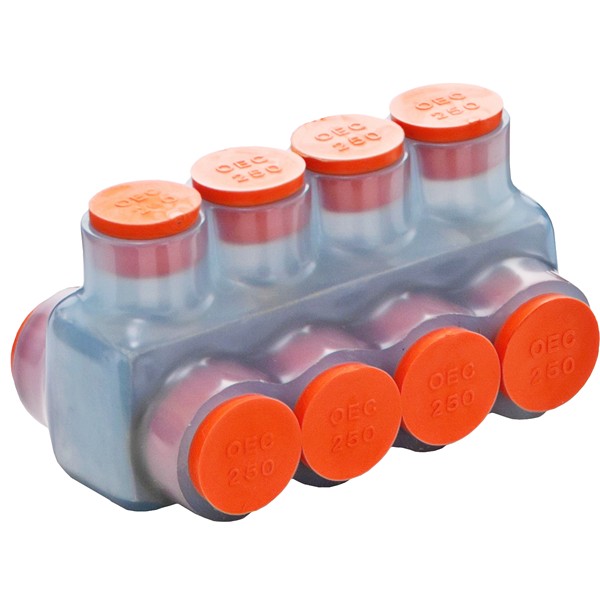

Morris 97436 Clear Multi Conductor Insulated Connector for Accurate Terminations

Morris 97436 Clear Multi Conductor Insulated Connector offers a reliable solution for electrical terminations, ensuring that your connections are always correct. The transparent insulation provides visual confirmation that each conductor is properly inserted, enhancing both safety and efficiency during installation. Crafted from durable 6061-T6 aluminum, this multi-port connector is dual-rated for use with both copper and aluminum wire, making it versatile for various projects. The single-piece clear molded insulation, combined with a rugged high-dielectric plastisol dipped coating, ensures chemical and abrasion resistance, prolonging the lifespan of your connections. Pre-filled with an oxide inhibitor, it further protects against corrosion. Designed for convenience, the Morris 97436 allows easy re-entry for changes, inspection, or troubleshooting. Removable plugs marked with wire sizes facilitate effortless installation, while the ability to enter wire from either side streamlines the process. With a temperature range of –49°F to 194°F and a voltage rating of 600 volts, this connector is suitable for indoor use with 194°F (90°C) cables. The Morris 97436 is ANSI C119.4 and cULus 486b listed, making it a dependable choice for professionals seeking efficiency and reliability in their electrical connections.

With our Clear Multi Conductor Insulated Connector, you'll see your termination is right every time

• Wire Entry from Either Side of Clear Insulated Connector
• Clear Insulation allows Visual Confirmation that conductor is properly inserted
• Indoor Use Only
• Easy Re-Entry for Changes, Inspection or Troubleshooting
• PVC insulation reduces the likelihood & cost of power outages caused by improper or inconsistent insulated connections done manually in the field
• Rated for use with 194°F(90°C) Cables
• Insulated Aluminum Connector eliminates the need for time consuming manual taping, reducing installation time
• One Wire Per Terminal
• Removable Plugs marked with wire size provide easy access for installation.
• Single Piece Clear Molded Insulation with Rugged High-Dielectric Plastisol Dipped Coating is chemical and abrasion resistant
• Multi-Port 6061-T6 Aluminum Connector - CU9AL Dual Rated for use with Copper and/or Aluminum wire
• Pre-filled with Oxide Inhibitor
• 600 Volt
• Dimension Measurements = Inches
• Temperature range of –49°F to 194°F (–45° to 90°C)
• ANSI C119.4 & cULus 486b Listed
