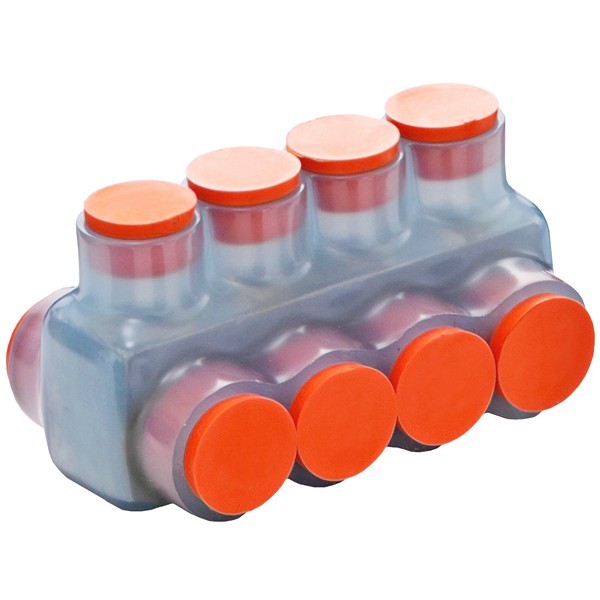

Morris 97440 Clear Multi Conductor Insulated Connector for Reliable Termination

Morris 97440 Clear Multi Conductor Insulated Connector offers a reliable solution for ensuring the integrity of your wire terminations. The clear insulation allows for visual confirmation, ensuring that conductors are properly inserted every time. Crafted from durable 6061-T6 aluminum, this multi-port connector is dual rated for use with both copper and aluminum wire, making it versatile for various applications. The rugged, molded insulation features a high-dielectric, plastisol-dipped coating, providing chemical and abrasion resistance. Pre-filled with an oxide inhibitor, it safeguards connections from corrosion, while easy re-entry ports facilitate changes, inspections, or troubleshooting without hassle. Each removable plug is conveniently marked with wire sizes for straightforward installation, accommodating wire entry from either side. Designed for indoor use, the Morris 97440 operates efficiently within a temperature range of –49°F to 194°F and can handle cables rated for 600 volts. Its single wire per terminal configuration and PVC insulation reduce risks and costs associated with power outages from improper connections. With dimensions of 6.70" in length, 3.03" in height, and 2.97" in width, this connector is a practical choice for any professional seeking efficiency and reliability in their electrical installations. ANSI C119.4 and cULus 486b listings ensure compliance with industry standards.

With our Clear Multi Conductor Insulated Connector, you'll see your termination is right every time

• Wire Entry from Either Side of Clear Insulated Connector
• Clear Insulation allows Visual Confirmation that conductor is properly inserted
• Indoor Use Only
• Easy Re-Entry for Changes, Inspection or Troubleshooting
• PVC insulation reduces the likelihood & cost of power outages caused by improper or inconsistent insulated connections done manually in the field
• Rated for use with 194°F(90°C) Cables
• Insulated Aluminum Connector eliminates the need for time consuming manual taping, reducing installation time
• One Wire Per Terminal
• Removable Plugs marked with wire size provide easy access for installation.
• Single Piece Clear Molded Insulation with Rugged High-Dielectric Plastisol Dipped Coating is chemical and abrasion resistant
• Multi-Port 6061-T6 Aluminum Connector - CU9AL Dual Rated for use with Copper and/or Aluminum wire
• Pre-filled with Oxide Inhibitor
• 600 Volt
• Dimension Measurements = Inches
• Temperature range of –49°F to 194°F (–45° to 90°C)
• ANSI C119.4 & cULus 486b Listed
