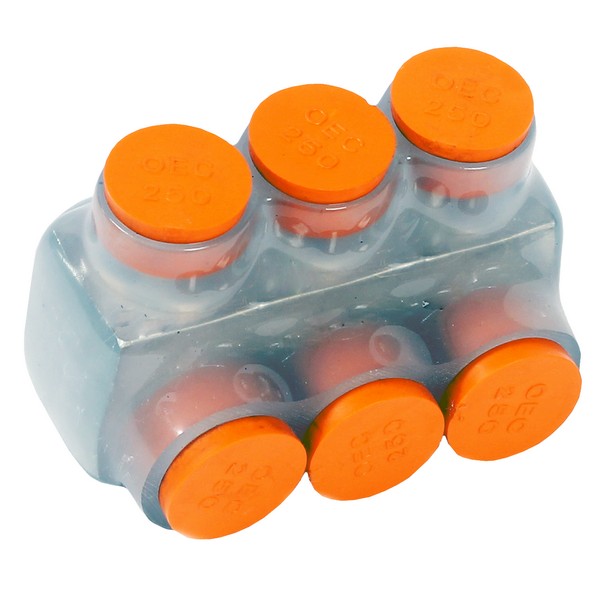

Morris 97458 Clear Multi Conductor Insulated Connector for Accurate Termination

Morris 97458 Clear Multi Conductor Insulated Connector provides a reliable solution for your electrical connections, ensuring you can visually confirm proper termination every time. Designed with clear insulation, this connector allows for easy inspection and verification of conductor placement. Constructed from multi-port 6061-T6 aluminum, the CU9AL dual-rated connector is compatible with both copper and aluminum wire, offering versatility for various applications. The rugged, single-piece clear molded insulation is coated with high-dielectric plastisol, making it resistant to chemicals and abrasion, ideal for demanding environments. This connector comes pre-filled with an oxide inhibitor to enhance conductivity and prevent corrosion. Its design allows for easy re-entry, making changes, inspections, or troubleshooting straightforward. Removable plugs, clearly marked with wire size, facilitate quick installation. With a temperature range of –49°F to 194°F (–45° to 90°C) and the ability to accommodate wire entry from either side, the Morris 97458 is both user-friendly and efficient. It eliminates the need for manual taping, reducing installation time and improving safety by minimizing the risk of power outages due to improper connections. ANSI C119.4 and cULus 486B listings ensure compliance with industry standards, making this connector a dependable choice for indoor use.

With our Clear Multi Conductor Insulated Connector, you'll see your termination is right every time

• Wire Entry from Either Side of Clear Insulated Connector
• Clear Insulation allows Visual Confirmation that conductor is properly inserted
• Indoor Use Only
• Easy Re-Entry for Changes, Inspection or Troubleshooting
• PVC insulation reduces the likelihood & cost of power outages caused by improper or inconsistent insulated connections done manually in the field
• Rated for use with 194°F(90°C) Cables
• Insulated Aluminum Connector eliminates the need for time consuming manual taping, reducing installation time
• One Wire Per Terminal
• Removable Plugs marked with wire size provide easy access for installation.
• Single Piece Clear Molded Insulation with Rugged High-Dielectric Plastisol Dipped Coating is chemical and abrasion resistant
• Multi-Port 6061-T6 Aluminum Connector - CU9AL Dual Rated for use with Copper and/or Aluminum wire
• Pre-filled with Oxide Inhibitor
• 600 Volt
• Dimension Measurements = Inches
• Temperature range of –49°F to 194°F (–45° to 90°C)
• ANSI C119.4 & cULus 486b Listed

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
