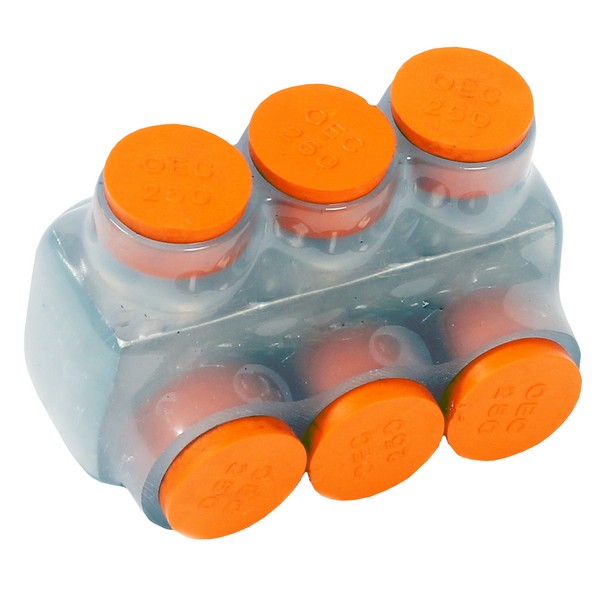

Morris 97465 Clear Multi Conductor Insulated Connector is designed for professionals who demand precision and efficiency in their electrical installations. The clear insulation provides visual confirmation that conductors are properly inserted, ensuring a reliable connection every time. Constructed from multi-port 6061-T6 aluminum, this connector is dual-rated for use with both copper and aluminum wire, making it versatile for various applications. The single-piece molded insulation, coated in rugged high-dielectric plastisol, is resistant to chemicals and abrasion, providing durability in challenging environments. Pre-filled with an oxide inhibitor, it enhances the longevity of the connection and reduces maintenance needs. Featuring removable plugs marked with wire sizes, the design allows for easy re-entry for changes, inspections, or troubleshooting. With a temperature range of -49°F to 194°F (-45°C to 90°C) and a voltage rating of 600 volts, the Morris 97465 connector is perfect for indoor use, accommodating wire sizes from 1/0 to 2. Its user-friendly design eliminates time-consuming manual taping, significantly reducing installation time while minimizing the risk of power outages caused by inconsistent connections. ANSI C119.4 and cULus 486b listed, this connector exemplifies reliability and safety for your electrical projects.
With our Clear Multi Conductor Insulated Connector, you'll see your termination is right every time
Al9cu Dual Rating: AL9CU Dual Rated
Color: Clear
Connector Type: Single Entry
Country of Origin: India
Description: Clear Insulated Multi-Cable Connector - Single Entry 3 Port 1/0-2
Height: 1.93"
Insulation Type: Rubber
Length: 1.90"
Material: 6061-T6 Aluminum
Maximum Voltage: 600
Mfg Standard: UL 486B
No. of Ports: 3
Temperature Rating: -49oF to 194oF (-45o to 90oC)
Type: Clear Insulated Multi-Cable Connector - Single Side Entry
Ul Listing: cULus
Upc: 601986974653
Warning: Cancer and Reproductive Harm
Width: 1.80"
Wire Range: 1/0-2
Wire Size: 1/0-2
