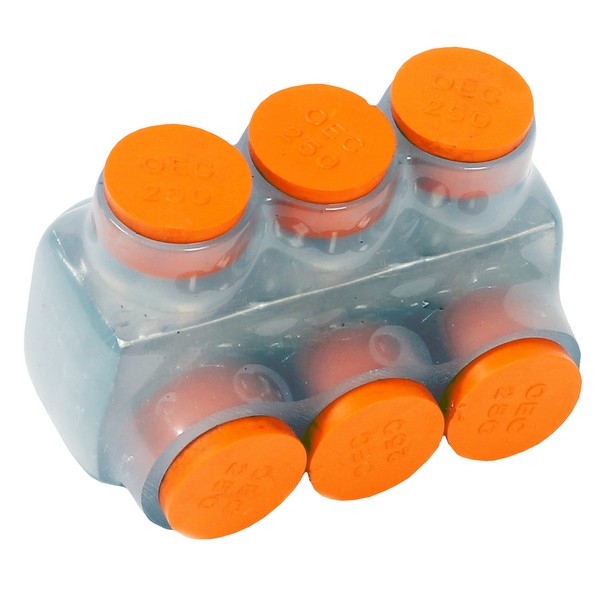

Morris 97473 Clear Multi Conductor Insulated Connector for Accurate Termination

Morris 97473 Clear Multi Conductor Insulated Connector offers a reliable solution for electrical terminations, ensuring accuracy every time. The clear insulation provides visual confirmation that the conductor is properly inserted, enhancing installation confidence. Crafted from durable 6061-T6 aluminum, this multi-port connector is dual-rated for use with both copper and aluminum wire, making it versatile for various applications. Designed with a single piece clear molded insulation and a rugged high-dielectric plastisol dipped coating, the connector is resistant to chemicals and abrasion. Pre-filled with oxide inhibitor, it ensures longevity and reduces corrosion. The easy re-entry feature allows for quick changes, inspections, or troubleshooting without hassle, while removable plugs marked with wire size simplify installation. Suitable for indoor use only, the Morris 97473 operates within a temperature range of –49°F to 194°F (-45° to 90°C) and is rated for 600 volts, accommodating wire sizes from 2/0 to 6. With dimensions of 1.93" high, 1.90" long, and 1.80" wide, this connector contains three ports, allowing one wire per terminal. ANSI C119.4 and cULus 486b listed, it significantly reduces the risk of power outages due to improper connections, streamlining your electrical projects.

With our Clear Multi Conductor Insulated Connector, you'll see your termination is right every time

• Wire Entry from Either Side of Clear Insulated Connector
• Clear Insulation allows Visual Confirmation that conductor is properly inserted
• Indoor Use Only
• Easy Re-Entry for Changes, Inspection or Troubleshooting
• PVC insulation reduces the likelihood & cost of power outages caused by improper or inconsistent insulated connections done manually in the field
• Rated for use with 194°F(90°C) Cables
• Insulated Aluminum Connector eliminates the need for time consuming manual taping, reducing installation time
• One Wire Per Terminal
• Removable Plugs marked with wire size provide easy access for installation.
• Single Piece Clear Molded Insulation with Rugged High-Dielectric Plastisol Dipped Coating is chemical and abrasion resistant
• Multi-Port 6061-T6 Aluminum Connector - CU9AL Dual Rated for use with Copper and/or Aluminum wire
• Pre-filled with Oxide Inhibitor
• 600 Volt
• Dimension Measurements = Inches
• Temperature range of –49°F to 194°F (–45° to 90°C)
• ANSI C119.4 & cULus 486b Listed
