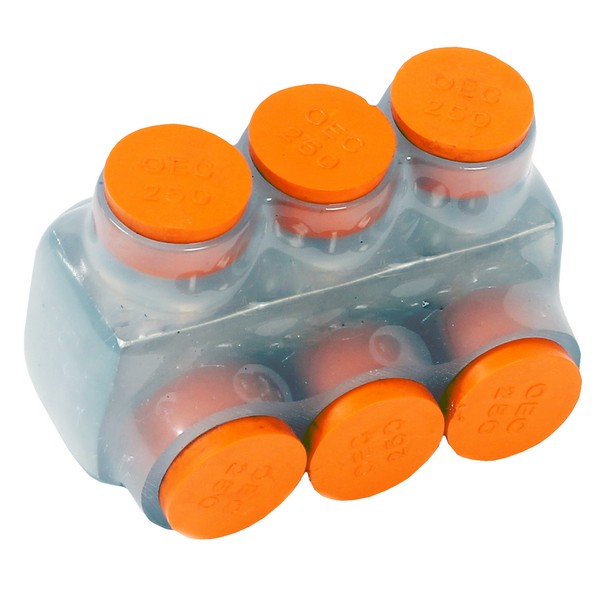

Morris 97481 Clear Multi Conductor Insulated Connector for Accurate Termination

Morris 97481 Clear Multi Conductor Insulated Connector ensures that your electrical terminations are consistently reliable and efficient. Designed with clear insulation, this connector allows for visual confirmation that conductors are properly inserted, promoting accuracy during installation. Constructed from durable 6061-T6 aluminum, the dual-rated CU9AL connector is compatible with both copper and aluminum wire. Its rugged, high-dielectric plastisol-dipped coating provides chemical and abrasion resistance, while the pre-filled oxide inhibitor enhances performance by preventing corrosion. The single-piece molded insulation simplifies installation, eliminating the need for manual taping and significantly reducing installation time. With a temperature range of –49°F to 194°F (–45° to 90°C) and rated for 600 volts, the Morris 97481 is perfect for indoor use. Its design allows for easy re-entry, making changes, inspections, or troubleshooting straightforward. The removable plugs are marked with wire sizes for quick access, ensuring seamless installation. Measuring 1.99" in height, 2.10" in length, and 1.90" in width, the connector accommodates wire ranges from 3/0 to 6, making it versatile for various applications. Trust the Morris 97481 for efficient and reliable electrical connections every time.

With our Clear Multi Conductor Insulated Connector, you'll see your termination is right every time

• Wire Entry from Either Side of Clear Insulated Connector
• Clear Insulation allows Visual Confirmation that conductor is properly inserted
• Indoor Use Only
• Easy Re-Entry for Changes, Inspection or Troubleshooting
• PVC insulation reduces the likelihood & cost of power outages caused by improper or inconsistent insulated connections done manually in the field
• Rated for use with 194°F(90°C) Cables
• Insulated Aluminum Connector eliminates the need for time consuming manual taping, reducing installation time
• One Wire Per Terminal
• Removable Plugs marked with wire size provide easy access for installation.
• Single Piece Clear Molded Insulation with Rugged High-Dielectric Plastisol Dipped Coating is chemical and abrasion resistant
• Multi-Port 6061-T6 Aluminum Connector - CU9AL Dual Rated for use with Copper and/or Aluminum wire
• Pre-filled with Oxide Inhibitor
• 600 Volt
• Dimension Measurements = Inches
• Temperature range of –49°F to 194°F (–45° to 90°C)
• ANSI C119.4 & cULus 486b Listed
