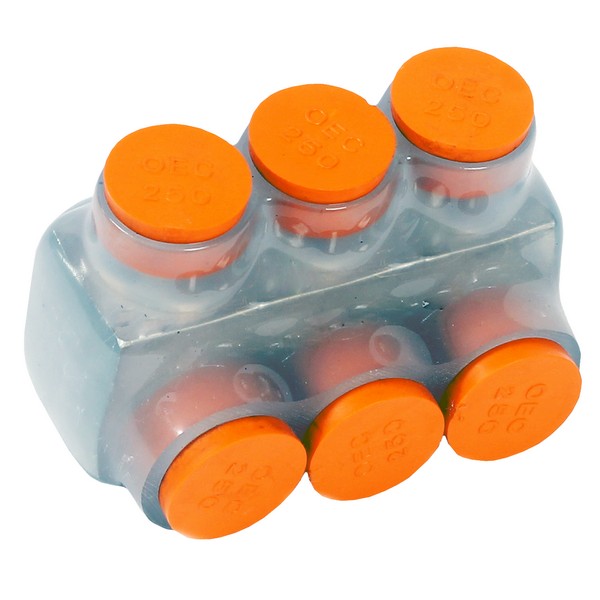

Morris 97488 Clear Multi Conductor Insulated Connector for Accurate Termination

Morris 97488 Clear Multi Conductor Insulated Connector ensures reliable terminations for your electrical projects. Designed for versatility, this multi-port connector is crafted from 6061-T6 aluminum and is dual-rated for both copper and aluminum wire, making it an excellent choice for various applications. The clear insulation offers visual confirmation that conductors are properly inserted, enhancing installation confidence. With a rugged high-dielectric Plastisol dipped coating, the connector is both chemically and abrasion-resistant, ensuring durability in demanding environments. Pre-filled with oxide inhibitor, it minimizes oxidation, increasing the lifespan of your connections. Easy re-entry allows for swift changes, inspections, or troubleshooting, while removable plugs marked with wire sizes provide convenient access during installation. This insulated aluminum connector accommodates wire entry from either side, streamlining the installation process and reducing the need for manual taping. Operating within a temperature range of –49°F to 194°F, it's rated for 600 volts and designed for indoor use only. The Morris 97488 connector, which supports a wire range of 250-6, is ANSI C119.4 and cULus 486b listed for peace of mind. Upgrade your electrical connections with this reliable and efficient component today.

With our Clear Multi Conductor Insulated Connector, you'll see your termination is right every time

• Wire Entry from Either Side of Clear Insulated Connector
• Clear Insulation allows Visual Confirmation that conductor is properly inserted
• Indoor Use Only
• Easy Re-Entry for Changes, Inspection or Troubleshooting
• PVC insulation reduces the likelihood & cost of power outages caused by improper or inconsistent insulated connections done manually in the field
• Rated for use with 194°F(90°C) Cables
• Insulated Aluminum Connector eliminates the need for time consuming manual taping, reducing installation time
• One Wire Per Terminal
• Removable Plugs marked with wire size provide easy access for installation.
• Single Piece Clear Molded Insulation with Rugged High-Dielectric Plastisol Dipped Coating is chemical and abrasion resistant
• Multi-Port 6061-T6 Aluminum Connector - CU9AL Dual Rated for use with Copper and/or Aluminum wire
• Pre-filled with Oxide Inhibitor
• 600 Volt
• Dimension Measurements = Inches
• Temperature range of –49°F to 194°F (–45° to 90°C)
• ANSI C119.4 & cULus 486b Listed
