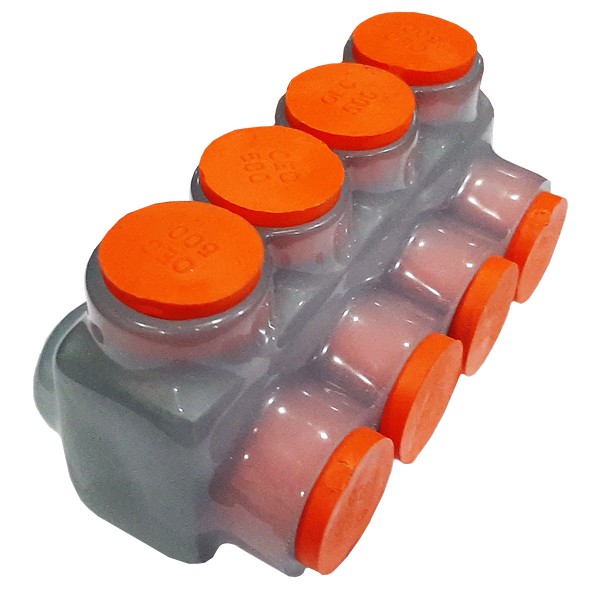

Morris 97496 Clear Multi Conductor Insulated Connector for Accurate Termination

Morris 97496 Clear Multi Conductor Insulated Connector offers an innovative solution for reliable electrical terminations. The clear insulation allows for visual confirmation that conductors are properly inserted, providing peace of mind during installation. Constructed from durable 6061-T6 aluminum, this multi-port connector is dual-rated for use with both copper and aluminum wire, ensuring versatility in various applications. The single-piece clear molded insulation is coated with rugged, high-dielectric Plastisol, making it resistant to chemicals and abrasions. Pre-filled with an oxide inhibitor, it enhances conductivity and longevity, while easy re-entry access simplifies any necessary changes, inspections, or troubleshooting. Removable plugs clearly marked with wire size ensure straightforward installation. With a temperature range of –49°F to 194°F (–45° to 90°C) and an impressive 600-volt rating, this connector is designed for indoor use only, accommodating wire sizes between 350 and 6. The innovative design eliminates time-consuming manual taping, significantly reducing installation time while preventing potential power outages caused by improper connections. The Morris 97496 is ANSI C119.4 and cULus 486b listed, making it a reliable choice for building professionals and knowledgeable homeowners alike.

With our Clear Multi Conductor Insulated Connector, you'll see your termination is right every time

• Wire Entry from Either Side of Clear Insulated Connector
• Clear Insulation allows Visual Confirmation that conductor is properly inserted
• Indoor Use Only
• Easy Re-Entry for Changes, Inspection or Troubleshooting
• PVC insulation reduces the likelihood & cost of power outages caused by improper or inconsistent insulated connections done manually in the field
• Rated for use with 194°F(90°C) Cables
• Insulated Aluminum Connector eliminates the need for time consuming manual taping, reducing installation time
• One Wire Per Terminal
• Removable Plugs marked with wire size provide easy access for installation.
• Single Piece Clear Molded Insulation with Rugged High-Dielectric Plastisol Dipped Coating is chemical and abrasion resistant
• Multi-Port 6061-T6 Aluminum Connector - CU9AL Dual Rated for use with Copper and/or Aluminum wire
• Pre-filled with Oxide Inhibitor
• 600 Volt
• Dimension Measurements = Inches
• Temperature range of –49°F to 194°F (–45° to 90°C)
• ANSI C119.4 & cULus 486b Listed
