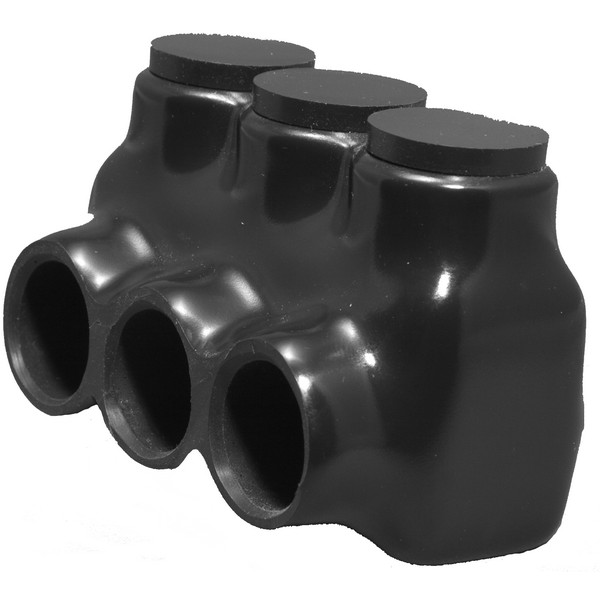

Morris 97519 Single Side Entry Cable Connectors simplify cable splicing and tapping applications, making them an essential choice for any electrical project. Designed for ease of use, these connectors allow wires to enter from the same side, facilitating a straightforward installation process. Constructed from robust 6061-T6 aluminum with a dual rating for copper and aluminum wires, these connectors are insulated with a rugged high-dielectric rubber/vinyl coating that ensures long-lasting durability. Each connector is pre-filled with an oxide inhibitor to prevent corrosion, further enhancing its reliability. The easy re-entry design allows for quick changes, inspections, or troubleshooting, making maintenance a breeze. Morris 97519 connectors are rated for indoor use only, accommodating a temperature range from –49°F to 194°F (–45° to 90°C) and supporting wire sizes from 2 to 14 AWG. Each connector features three wire ports, with one wire per terminal for secure connections. Additionally, plugs are clearly marked with the maximum wire size for easy identification. With a voltage rating of 600 volts and compliance with ANSI C119.4 & cULus 486b standards, these connectors are suitable for applications up to 750MCM. Experience reliable and efficient connections with Morris 97519 Single Side Entry Cable Connectors.
Single Side Entry Cable Connectors simplify cable splicing and tapping applications.
Al9cu Dual Rating: AL9CU Dual Rated
Allen Hex: Slotted
Color: Black
Connector Type: Multi Conductor Single Side Entry
Country of Origin: India
Description: Black Insulated Multi-Cable Connector - Single Entry 3 Ports 2 - 14
Height: 1.50"
Insulation Type: Rubber
Length: 1.60"
Material: 6061-T6 Aluminum
Maximum Voltage: 600
Mfg Standard: UL 486B
Number of Postions: 3
Temperature Rating: -49oF to 194oF (-45o to 90oC)
Type: Black Multi-Cable Connector - Single Side Entry
Ul Listing: cULus
Upc: 601986975193
Warning: Cancer and Reproductive Harm
Wire Ports: 3
Wire Range: 2 - 14
Wire Size: 2 - 14
