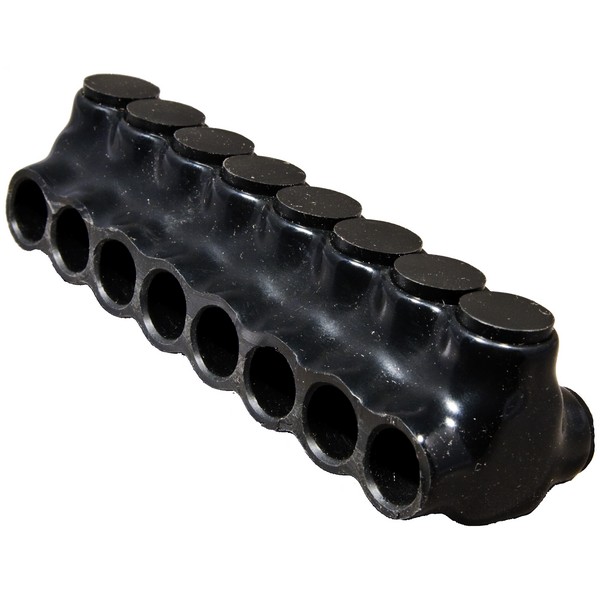

Morris 97618 Dual Entry Cable Connector simplifies electric splicing and tapping, making it a must-have for professionals in the field. Designed for efficiency, this connector allows wire entry from either side, streamlining installation and repairs. Its rugged high-dielectric rubber/vinyl coating ensures durability and safety, while the pre-filled oxide inhibitor helps prevent corrosion, extending the lifespan of your connections. The Morris 97618 is dual-rated, accommodating both copper and aluminum wires with its CU9AL 6061-T6 aluminum construction. Each terminal supports one wire, and with a wire range of 4-14 AWG, it offers versatile application options. Additionally, plugs are clearly marked with the maximum wire size for quick and easy identification. This connector is engineered for re-entry, allowing for changes, inspections, or troubleshooting without hassle. It operates effectively in a temperature range of –49°F to 194°F (–45° to 90°C) and is rated for 600 volts, making it suitable for various indoor applications. Certified to ANSI C119.4 and cULus 486b standards up to 750MCM, the Morris 97618 Dual Entry Cable Connector is an essential tool for ensuring reliable electrical connections in any project.
Our Dual Entry Cable Connector makes electric Splicing & Tapping Simple Fast & Easy
Al9cu Dual Rating: AL9CU Dual Rated
Allen Hex: Slotted
Color: Black
Connector Type: Dual Entry
Country of Origin: India
Description: Black Insulated Multi-Cable Connector - Dual Entry 8 Ports 4 - 14
Height: 1.45"
Insulation Type: Rubber
Length: 3.59"
Material: 6061-T6 Aluminum
Maximum Voltage: 600
Mfg Standard: UL 486B
Number of Postions: 8
Temperature Rating: -49oF to 194oF (-45o to 90oC)
Type: Black Multi-Cable Connector - Dual Entry
Ul Listing: cULus
Upc: 601986976183
Warning: Cancer and Reproductive Harm
Wire Ports: 8
Wire Range: 4-14
Wire Size: 4-14
