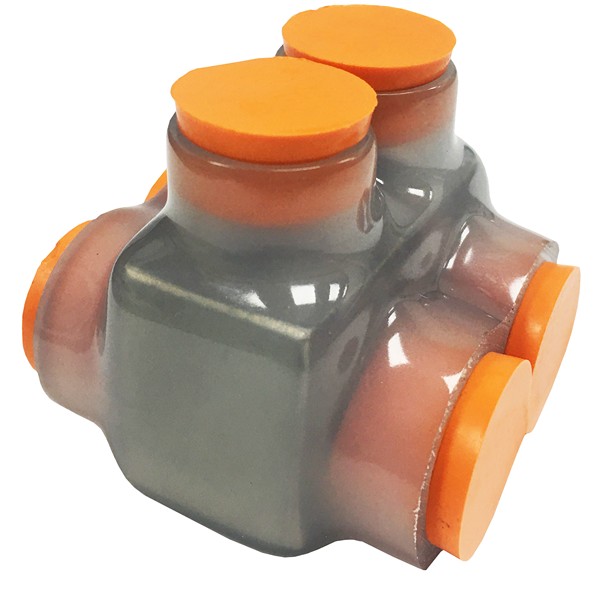

Morris 97631 Clear Multi Conductor Insulated Connector for Accurate Termination

Morris 97631 Clear Multi Conductor Insulated Connector ensures reliable terminations every time. Designed with clear insulation, this connector allows for visual confirmation that conductors are properly inserted, significantly enhancing installation accuracy. Crafted from multi-port 6061-T6 aluminum, it is dual-rated for use with both copper and aluminum wire. The single-piece, clear molded insulation features a rugged high-dielectric plastisol dipped coating that is resistant to chemicals and abrasion, making it ideal for tough environments. Pre-filled with an oxide inhibitor, the connector provides enhanced protection against corrosion. Its easy re-entry design allows for quick changes, inspections, or troubleshooting, while removable plugs marked with wire sizes simplify the installation process. Rated for up to 600 volts and designed for indoor use only, the Morris 97631 accommodates wire sizes ranging from 750 to 250, with a temperature range of –49°F to 194°F (–45° to 90°C). The insulated aluminum construction eliminates the need for time-consuming manual taping, promoting faster installation and reducing the risk of power outages caused by inconsistent connections. ANSI C119.4 and cULus 486b listed, this connector meets the highest safety standards, making it a dependable choice for your electrical projects.

With our Clear Multi Conductor Insulated Connector, you'll see your termination is right every time

• Wire Entry from Either Side of Clear Insulated Connector
• Clear Insulation allows Visual Confirmation that conductor is properly inserted
• Indoor Use Only
• Easy Re-Entry for Changes, Inspection or Troubleshooting
• PVC insulation reduces the likelihood & cost of power outages caused by improper or inconsistent insulated connections done manually in the field
• Rated for use with 194°F(90°C) Cables
• Insulated Aluminum Connector eliminates the need for time consuming manual taping, reducing installation time
• One Wire Per Terminal
• Removable Plugs marked with wire size provide easy access for installation.
• Single Piece Clear Molded Insulation with Rugged High-Dielectric Plastisol Dipped Coating is chemical and abrasion resistant
• Multi-Port 6061-T6 Aluminum Connector - CU9AL Dual Rated for use with Copper and/or Aluminum wire
• Pre-filled with Oxide Inhibitor
• 600 Volt
• Dimension Measurements = Inches
• Temperature range of –49°F to 194°F (–45° to 90°C)
• ANSI C119.4 & cULus 486b Listed
