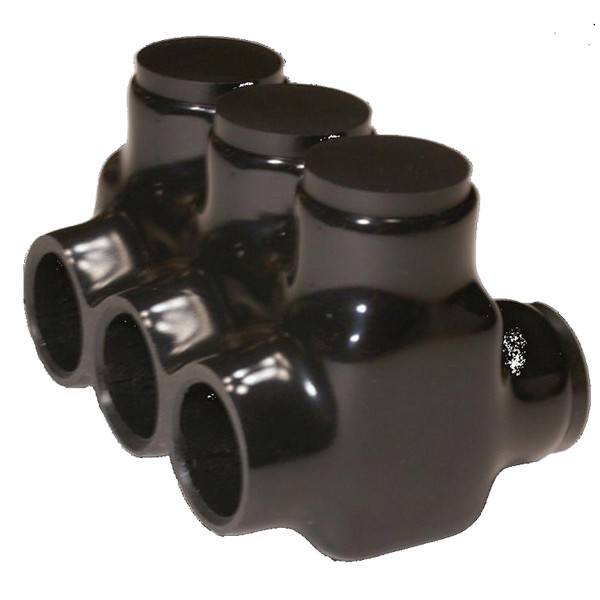

Morris 97633 Dual Entry Cable Connector simplifies electrical splicing and tapping, making it a must-have for any professional or knowledgeable homeowner. Designed with user convenience in mind, this connector allows wire entry from either side, ensuring flexible installation options. The rugged, high-dielectric rubber/vinyl coating provides insulation, while the pre-filled oxide inhibitor enhances conductivity and prevents corrosion. This connector features easy re-entry for modifications, inspections, or troubleshooting, making it ideal for ongoing projects. Each plug is clearly marked with the maximum wire size, facilitating straightforward identification. The Morris 97633 is dual-rated for use with both copper and aluminum wires, thanks to its CU9AL 6061-T6 aluminum construction. Designed to accommodate one wire per terminal, this connector supports a wire range of 2/0 to 6. Engineered for durability, it operates effectively within a temperature range of –49°F to 194°F (–45° to 90°C) and is cULus 486b listed through 750MCM. Rated for 600 volts at 194°F (90°C), this connector is intended for indoor use only. With dimensions of 1.85" in height and 1.9" in length, the Morris 97633 Dual Entry Cable Connector is an essential component for reliable electrical installations.
Our Dual Entry Cable Connector makes electric Splicing & Tapping Simple Fast & Easy
Al9cu Dual Rating: AL9CU Dual Rated
Allen Hex: 3/16"
Color: Black
Connector Type: Dual Entry
Country of Origin: India
Description: Black Insulated Multi-Cable Connector - Dual Entry 3 Ports 2/0 - 6
Height: 1.85"
Insulation Type: Rubber
Length: 1.9"
Material: 6061-T6 Aluminum
Maximum Voltage: 600
Mfg Standard: UL 486B
Number of Postions: 3
Temperature Rating: -49oF to 194oF (-45o to 90oC)
Type: Black Multi-Cable Connector - Dual Entry
Ul Listing: cULus
Upc: 601986976336
Warning: Cancer and Reproductive Harm
Wire Ports: 3
Wire Range: 2/0 - 6
Wire Size: 2/0 - 6
