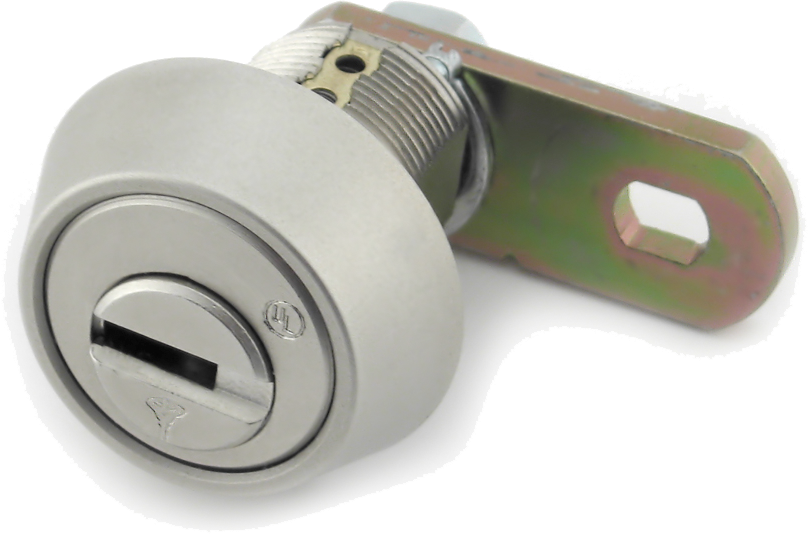

Mul-T-Lock 206SP-CL192KR1-NS-D Cam Lock 3/4in x 1-1/8in Key Retaining

Mul-T-Lock 206SP-CL192KR1-NS-D Cam Lock offers a robust security solution with a 1-1/8" body length, designed to fit standard 3/4" double D mounting holes. This high-security cam lock features a key-retaining mechanism, ensuring that the key cannot be removed while the lock is in an unlocked position, enhancing security and reducing the risk of unauthorized access. Equipped with Mul-T-Lock’s unique high-precision pin tumbler system, this lock is compatible with the 206SP keyway and comes with two working keys and a key control card. Versatile in operation, the 206SP cam lock supports both 90-degree and 180-degree unlocking rotations, and it can be adjusted for clockwise or counter-clockwise operation. Installation is made easy with an opening requirement of 0.760" x 0.630". Constructed from durable materials, including a brass body, steel cam, and nickel silver and stainless steel pins, this lock is built for longevity and reliability. Additionally, options such as classic and Interactive®+ platforms, keyed differently or alike, and master keying provide flexibility to meet various security needs. With UL 437 certification, the Mul-T-Lock 206SP-CL192KR1-NS-D is an excellent choice for securing cabinets, drawers, and more.

Cam Lock 3/4in x 1-1/8in Key Retaining

Mul-T-Lock high security cam lock, 1-1/8" body length, key retaining - fits standard 3/4" double d mounting hole. Cylinder mechanism supplied with Mul-T-Lock unique high precision pin tumbler system utilizing the Interactive security key system. Lock supplied standard to the 206SP keyway with key control card and two working keys. Cam lock is configurable from 5/8" to 1-1/8" lengths with included cams and security collar. Rotation limiter allows either 90 degree or 180 degree unlocking rotation. Key is not removable in unlocked position - key retaining.

Specifications:

• Operation:
• Retaining: 90˚,180˚ cam rotation
• Non-retaining: 90˚ cam rotation
• Adjustable for clockwise or counter-clockwise Operation
• Opening required for installation: 0.760"(19.3mm) x 0.630"(16mm)
• Materials:
• Body, plug and ring: brass
• Cam: steel
• Pins: nickel silver and stainless steel
• Mechanism: Mul-T-Lock’s unique, high precision pin tumbler system.
• Keys:
• Reversible nickel silver key with plastic key head and colored insert for identification.
• Also available in all nickel silver
• Options:
• Classic, Interactive® + platforms
• Keyed different, keyed alike
• Master keyed
• Variety of cams
• Standards: UL 437
• Retaining Key Hardware Set:
• 1 Flat cam
• 1 Offset cam
• 1 Spacer ring 3.4mm
• 1 Spacer ring 9.4mm
• 1 Plate for wood application
• Non-Retaining Key Hardware Set:
• 1 Flat cam
• 1 Spacer ring 3.4mm
• 1 Spacer ring 8.0mm
• 1 Plate for wood application

Features

• Cam: steel
• Operation:
• Master keyed
• Pins: nickel silver and stainless steel
• 1 Offset cam
• Retaining Key Hardware Set:
• Adjustable for clockwise or counter-clockwise Operation
• Non-Retaining Key Hardware Set:
• Materials:
• Opening required for installation: 0.760"(19.3mm) x 0.630"(16mm)
• Body, plug and ring: brass
• 1 Spacer ring 9.4mm
• Mechanism: Mul-T-Lock’s unique, high precision pin tumbler system.
• Reversible nickel silver key with plastic key head and colored insert for identification.
• Options:
• 1 Plate for wood application
• Non-retaining: 90˚ cam rotation
• Standards: UL 437
• 1 Flat cam
• Retaining: 90˚,180˚ cam rotation
• Classic, Interactive® + platforms
• Keyed different, keyed alike
• Keys:
• 1 Spacer ring 8.0mm
• Also available in all nickel silver
• Variety of cams
• 1 Spacer ring 3.4mm
