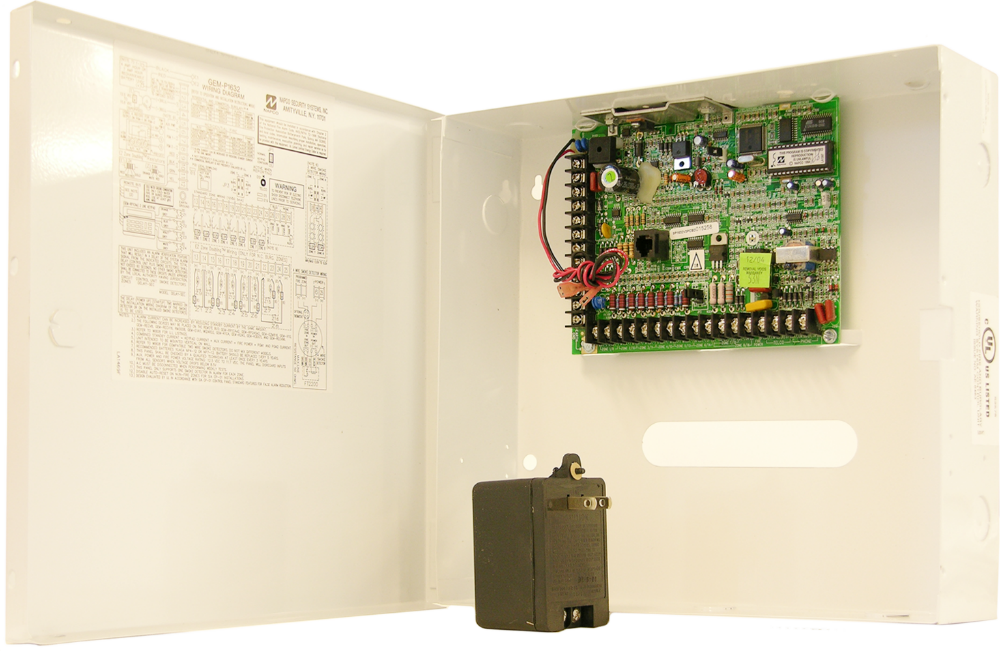

Napco Security GEM-P1632 16-Zone Control Panel 32 User

Napco Security Alarm GEM-P1632 16-Zone Control Panel offers a robust hybrid solution for both residential and commercial security needs. With the capability to expand from 8 to an impressive 32 zones, this control panel is designed for maximum flexibility, allowing you to tailor your security setup precisely to your requirements. It supports up to 32 user codes and features 8 built-in relays and X-10 compatibility, providing seamless integration for all your security devices. The GEM-P1632 boasts an intuitive "Self-Programming Plus 2" menu-driven setup, making installation and customization straightforward. It can manage both hardwire and wireless zones, ensuring reliable performance through its crystal-controlled Gemini Wireless technology. This panel also includes programmable features such as automatic interior bypass, multiple entry delay options, and a comprehensive event log that records up to 400 events. Designed for durability, the GEM-P1632 operates efficiently in a wide temperature range and utilizes a maintenance-free fuseless design. It also supports major communicator formats, ensuring compatibility with your existing systems. With the ability to support up to 8 X-10 devices and a dynamic battery test feature, this control panel guarantees peace of mind for any environment. Whether upgrading or starting fresh, the GEM-P1632 is a powerful choice for your security needs.

16-Zone Control Panel 32 User

The Gemini GEM-P1632 hybrid 8 to 32-zone control/communicator features 8 zones expandable to 32 zones with (multiplexing) assignable to either of two areas. Supporting up to 32 user codes, 8 relays, and X-10 support, the GEM-P1632 powerhouse has it all, wireless or hardwire! The panel supports all reliable, crystal-control Gemini Wireless, proven in independent tests to outperform the top competitive brands.

Features:

• 8 Hardwire/wireless zones on board.
• Up to 32 zones with multiplex expansion including 2 2-wire fire zones (7;8)
• Uses economy GEMEZM4/8 Zone Expansion Module (or standard GEMEZM8).
• "Self-Programming Plus 2" menu-driven self-programming mode with either custom alpha keypad, GEMRP1CAe2 or KA1CA (with Stay and Away keys).
• Fuseless maintenance-free operation
• Up to 32 user codes.
• Up to 2 areas; partitionable by area.
• 3 on-board outputs, up to16 external relay outputs (RM3008s).
• Up to 2 RF receivers
• Interior bypass group with programmable automatic interior bypass.
• Up to 8 X-10 devices supported for 16 different events.
• 255 event schedule.
• 400 event log.
• Auto Arm.
• Uses up to 7 of any of the classic or K-series stay and away keypads: custom alpha/icon or digital keypads (as shown on right).
• Programmable Telco line cut supervision with delay.
• 3 keypad panic (F, P, A)
• Major communicator formats, including: 4/2, SIA, 4+2 and Point ID, plus pager.
• Backup/double/split reporting; three 20-digit telephone numbers.
• Dynamic battery test.
• Reports alarms, restores and troubles by zone.
• 2 programmable entry delay times.
• Chime by zone.
• 8 EOL burglary zones programmable for area, E/E delay, interior, follower, day zone, chime, fire options, sensor watch, swinger shutdown, cross zoning , etc.
• Multiplex Expandability with GEMEZM4/8 or GEMEZM8 zone expansion modules
• Quick loader up/downloading, including unique unattended method
• Choice of 8 or 16 pt Gemini RF receivers or keypad/receiver
• Event log with open/close suppression
• Supports Wizard IIe talking phone-in interface module

Specifications:

• Output power amps: (with 20VA transformer included) 500mA/2A; with optional 40VA trans 650mA/2A.
• Operating temp: 0 - 49 degrees C.
• Input power: 16.5VAC via Class 2 plug-in 40VA transformer
• Loop voltage: 10-13Vdc
• Loop current: 2.5mA with 2.2k ohm EOLR; 5mA for 2-wire fire
• Loop resist.: 300 ohm max.; 50 ohm max for 2-wire fire
• Aux & remote power: 12Vdc regulated
• Combined standby current: 650mA
• Alarm current: 2A
• Burg. voltage output: 1; Programmable negative outputs: 2
