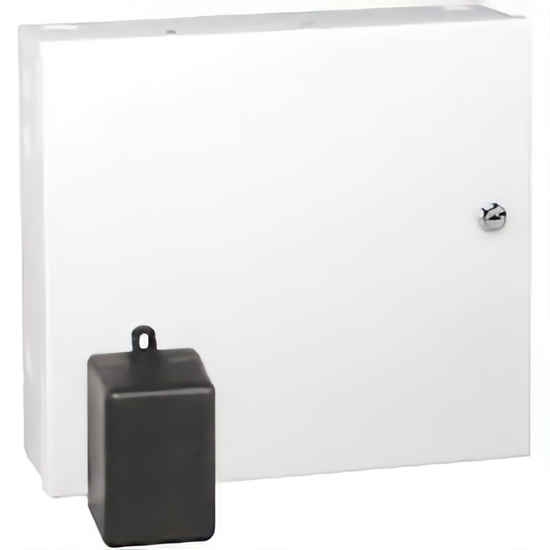

Napco Security GEM-P1664 64-Zone Control Panel, Cabinet, Lock/KY

Napco Security Alarm GEM-P1664 64-Zone Control Panel is a versatile hybrid that adapts to your security needs, allowing for expansion from 8 to 64 zones through multiplexing. This control panel supports a variety of keypads, including the new Gemini DK-series and VPS Series talking multifunction keypads, ensuring seamless integration with your existing security setup. Designed for ease of use, the GEM-P1664 features menu-driven self-programming and keypad programming, complete with alpha prompts for enhanced user experience. With the capacity for up to 64 user codes and 16 relays, managing access is straightforward. The panel supports two 2-wire fire zones and accommodates up to 64 end-of-line zones with multiplex expansion. Notable features include programmable entry delays, chime options by zone, and detailed event logging for alarms and system troubles. The GEM-P1664 also offers remote uploading/downloading via NAPCO’s Quick Loader software, making updates efficient and user-friendly. Built for flexibility, the panel supports various communicator formats and includes advanced security features like automatic interior bypass and programmable temperature alarms. With its robust capabilities and user-centric design, the Napco Security Alarm GEM-P1664 is an excellent choice for those seeking a reliable and expandable security solution.

64-Zone Control Panel, Cabinet, Lock/KY

The GEM-P1664 hybrid 8 to 64-Zone control/communicator features 8 zones expandable to 64 zones with multiplexing and supports all standard Gemini RP and K-series keypads, plus new Gemini DK-series door-style keypads and new VPS Series talking multifunction keypads, as well as reliable, NAPCO Gemini crystal-control transmitters and receivers, too. Supporting up to 64 user codes and 16 relays, the GEM-P1664 control features easy menu driven self-programming plus keypad programming (for all zones), which includes new alpha keypad question-prompts, even for setting test timer, fire zones and exit/entry and follower zones. Additionally, the panel can be remote up/downloaded using easy-to-use NAPCO Quick loader software.

Features:

• 8 Hardwire/wireless zones on board.
• Up to 64 zones with multiplex expansion including 2 two 2-wire fire zones
• With multiplexing, can accommodate up to 64 EOL zones (from custom alpha keypads or multiplex modules).
• EZ Programming2 More comprehensive, menu driven programming for all zones plus test timer.
• Up to 64 user codes
• Up to 4 areas
• 3 on-board outputs, up to16 external relay outputs (RM3008s).
• Up to 2 NAPCO helically-filtered, crystal-control RF receivers
• Interior bypass group with programmable automatic interior bypass
• 400 event log
• Auto Arm
• Uses up to 7 of any of the classic/RP-, K-series or DK-door style stay and away keypads
• Programmable telephone line cut supervision with delay
• 3 Keypad panics (F, P, A)
• Supports all major communicator formats, including: 4/2, SIA, 4+2 and Point ID, plus pager
• Backup/double/split reporting; three 20-digit telephone numbers
• Dynamic battery test
• Reports alarms, restores and troubles by zone.
• 2 programmable entry delay times
• Chime by zone
• 8 EOL burglary zones programmable for area, E/E delay, interior, follower, day zone, chime, fire options, sensor watch, swinger shutdown, cross zoning , etc.
• Multiplex Expandability with GEM EZM4/8 or GEM EZM8 zone expansion modules
• Quick loader up/downloading, including unique unattended method
• Choice of RF receivers
• Partitioning by area
• Event log with open/close suppression
• Event log viewable at keypad (total log, burglar alarm log, fire alarm log, system trouble log, o/c log)
• Cellphone-style keypad programming of zone descriptions ( text)
• Programmable 50Hz clock setting
• Programmable daylight savings time
• Programmable security bypass (code required for bypass
• Un-Bypassing while disarmed (code required)
• Temperature display at keypad (-30 to 600C Celsius or -22 to 1400 F Fahrenheit) with optional GEM-TEMP64 indoor/outdoor temperature sensor (Note: Keypad temperature display replaces date on display and is for use with custom alphanumeric keypads, only, i.e., DK1, K1, RP1)
• Programmable high/low temperature alarm reporting (requires feature enabled; zone 6)
• 24 Hour day zone trouble
• Programmable swinger shutdown (2 or 3 activations – selectable
• Zone ANDing/cross zoning (grouping of zones in which sequential zone activation is required to generate an alarm)

Specifications:

• Input Power: 16.5-18.0 VAC via class 2 plug-in 20VA, 40VA or 50VA transformer
• Loop Current: 3mA; 5mA for 2-wire smoke-detector zones
• Loop Resistance: 300 Ohm max.; 50 Ohm for 2-wire smoke detector zones
• Alarm Voltage Output: 1; Programmable negative
• Outputs: 2
• Auxiliary Power Output: 11.7-12.5 VDC
• Remote Power Output: 12 VDC regulated combined standby current - See WI1501
