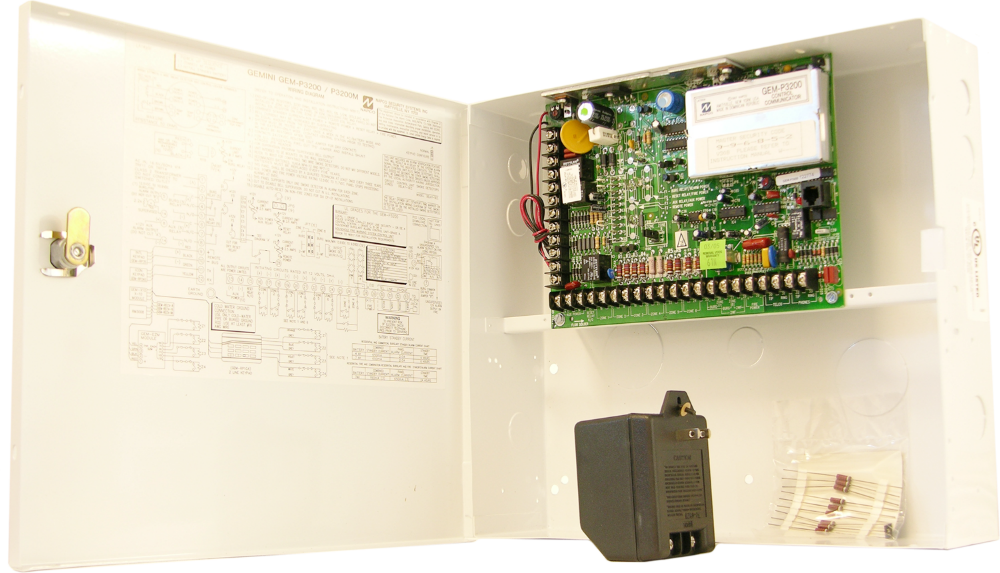

Napco Security GEM-P3200 8-32 Zones Control in Box 15 x 18

Napco Security Alarm GEM-P3200 is a highly versatile 8-zone hybrid control panel that can be expanded to accommodate up to 32 zones or 48 wireless points, making it ideal for both residential and commercial security applications. This control panel offers an impressive range of features, including 8 end-of-line-resistor burglary zones that can be programmed for various functions such as area, exit/entry delay, and fire options. The GEM-P3200 supports up to 32 individually coded users, each with customizable authority levels, ensuring personalized access control. It boasts three onboard relay outputs and can be expanded to include 24 additional external relay outputs. With two independent area partitions and up to seven separate access stations, this control panel provides extensive management capabilities. The user-friendly design features English-language prompts and system status messages, enhancing the overall ease of use. Additionally, the GEM-P3200 incorporates advanced diagnostics with the exclusive V.A.L.I.D. feature, minimizing false alarms caused by line resistance changes. This robust panel operates efficiently in temperatures ranging from 0-49ºC (32-120ºF) and is powered by a 16.5Vac transformer. With its comprehensive features and capabilities, the Napco Security Alarm GEM-P3200 is designed to provide peace of mind while ensuring optimal security for any environment.

8-32 Zones Control in Box 15 x 18

GEM-P3200 a popular, all-around 8 zone hybrid control expandable to 32 zones or 48 wireless points.

Features:

• 8 End-of-line-resistor burglary zones programmable for area, exit/entry delay, interior, follower, day zone, chime, fire options, sensor watch, swinger shutdown, zone ANDing and a variety of other features
• Up to 48 points of up to 32 zones with optional zone-expansion modules 4- zone keypad EZMs (built-in)
• Including up to 2 2-wire fire zones
• Up to 32 individually coded users, each with a programmable authority level
• 3 on-board relay outputs, expandable 24 external relay outputs
• 3 keypad panics: fire, police & auxiliary
• 2 independent area partitions
• Up to 7 separate access stations by up to 32 users
• Up to 24 separately-addressable X-10 devices with the GEM-X10KIT
• English-language prompts & system status messages from choice of keypad (8) models
• User-customized zone descriptions, reprogrammable as required
• 2-wire and 4-wire smoke detectors
• Reports alarms, restores and troubles by zone
• 255 event schedule
• 800 event log
• Overview mode permits monitoring and control of total system from one keypad
• 2 programmable entry delay times
• Interior-bypass group
• Dynamic battery test interrupts charging and places battery under load every four hours
• Chime by zone; programmable duration
• Non-volatile RAM retains memory during power losses
• Quick loader programmable
• Auto-Download log
• Exclusive V.A.L.I.D. feature (verifying automatic line integrity diagnostic) reduces false alarms due to changes in line resistance

Specifications:

• Operating temperature: 0-49ºC (32-120ºF)
• Input power: 16.5Vac via class 2 plug-in 40VA transformer
• Loop voltage: 10-13Vdc
• Loop current: 2.5mA with 2.2ohm end-of-line resistor (model EOL2.2K); 5mA for 2-wire smoke-detector zones
• Loop resistance: 300W max.; 50W for 2-wire smoke detector zones
• Relay outputs (burglary; reset; aux): wet, 12Vdc, 1.2A max.; dry (cut related jumper for dry contacts), SPDT contacts 24Vdc, 2A, 0: 6 PF
• Auxiliary power output: 12Vdc regulated
• Remote power output: 12Vdc regulated (for keypads)
• 650 mA combined standby current: (remote power + aux. power + reset relay power)
• Standby time: residential fire/burglary & commercial burglary, 4 hours min.
• EZM module: GEM-EZM8: Input, 50mA (including PGM output. PGM output: 5mA, 12V special application
• Keypad current: GEM-RP1CAe2: 100mA; 35mA if backlighting is disabled (cut W1, W2 & W3) PGM Output: 5mA, 12V special application
• Maximum number of keypads: 7. Maximum wiring length for each run (#22AWG): 1000’ divided by total number of keypads & EZMs on run
• Designer keypad dimensions: 4 3/8" x 5 7/8" x 1 1/6" (HWD); 11.1cm x 14.9cm x 2.7cm (HWD)

Resources

• Cut Sheet
