Napco Security GEM-P801 8-Zone Control Panel w/LED KP

Napco Security Alarm GEM-P801 8-Zone Control Panel w/LED KP delivers an innovative and economical solution for comprehensive security management. This hybrid control panel features 9 programmable zones, including hardwired and wireless options, ensuring flexibility without zone doubling. With the capability to support 6 hardwire or wireless zones, 2 additional wireless zones, and a dedicated 2-wire fire zone, the GEM-P801 is designed to meet diverse security needs. The package includes the GEM-RP8 backlit numeric keypad, while the deluxe option, GEM-P801ALPHA, offers a custom alpha backlit keypad with integrated zones. Users will appreciate the ease of operation with the one-touch EZ-Arm feature, allowing for quick engagement of stay and away modes. The system accommodates 8 user codes and logs up to 50 events, enhancing security oversight. Programming is straightforward with the NAPCO PCD-WINDOWS software, making setup efficient and user-friendly. Additional features such as line and bell-cut supervision, double reporting, and fuseless operation ensure reliability. The GEM-P801 operates within a temperature range of 0-49 degrees Celsius and is powered by a plug-in transformer. With the capacity for up to 4 keypads and support for a maximum of 10 smoke detectors, this control panel is an ideal choice for residential and commercial applications alike.

8-Zone Control Panel w/LED KP

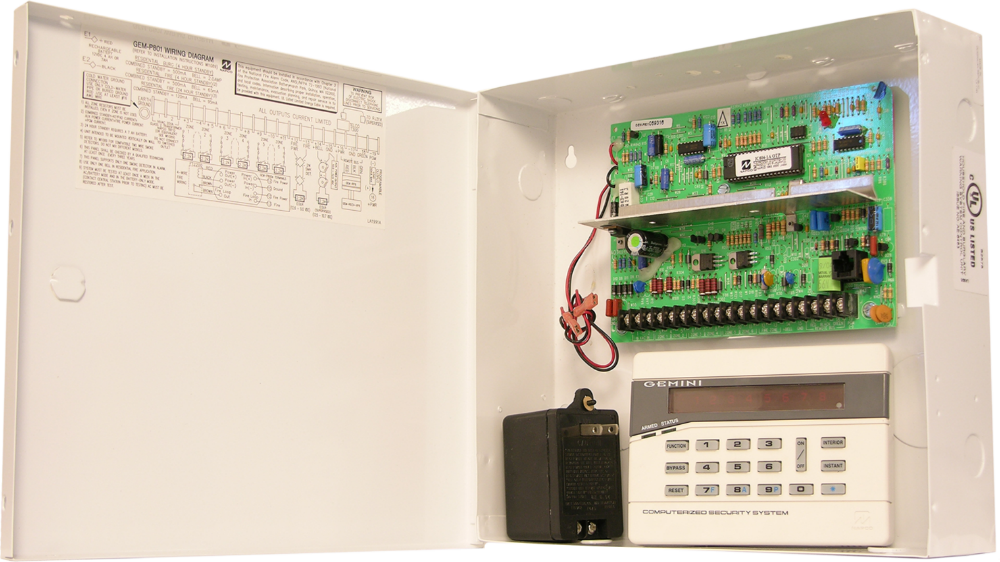

The new economical 9-Zone Hybrid Gemini P801 Series, sporting your choice of numeric or custom alpha keypads has many innovative features, including programmable EZ-Arm with new one-touch stay and away easy operation. The affordable P801 panel boasts 9 programmable zones, including 2-wire fire, with no zone doubling. Programmable zones on the GEMP801 panel include: 6 hardwire or wireless zones, 2 wireless zones and 1, 2-wire fire zone. The original panel package, model # GEMP801, includes the hybrid control, the classic GEM-RP8 backlit numeric designer keypad, and a plug-in transformer. And, new, the deluxe Pak, # GEM-P801ALPHA, consists of the panel, transformer and all new GEM-RP8LCD custom alpha backlit keypad with 2 built-in zones. The K-P801 is the control, transformer and numeric keypad with K-series stay and away keys. The Gemini P801 series features 8 user codes and 50 event log. Plus, it supports all the same standard Gemini transmitters used with other Gemini panels. Wireless transmitter signal strength is also audibly and visually reported right at the keypad. Programming for the panel is easy with the NAPCO PCD-WINDOWS software.

Features:

• 9 Programmable Zones, including 2-Wire (No Zone Doubling)
• 6 Hardwire or Wireless Zones plus: 2 Wireless Zones plus 1 2-Wire Fire Zone
• Supports all Gemini Transmitters using Gemini GEMRECVXP8 Wireless Receiver
• 8 Individually Reporting User Codes
• 50 Event Log
• Windows PC Programmable with PCD-Windows
• Line- and Bell-Cut Supervision
• Up/Downloadable Even with Phone Company Answering Service
• Unique Unattended Downloading
• All Major Communicator Formats plus Point ID & Pager Format
• Programmable Telco Line Cut Supervision
• Fuseless, maintenance-free operation
• Programmable Bell Cut Supervision
• Double Reporting & Backup Reporting
• EZ Wire Full-Size Terminal strips
• Output: 2A, max. - burglar; 12mA, max. - fire

Specification:

• Operating Temperature: 0- 49 degrees C (32-120 F)
• Input Power: 16.5 VAC Plug-in 20VA transformer
• Loop Voltage: 5 Volts
• Loop Current: 1.1 mA
• Loop Resistance: 300Ω per zone (max.)
• Alarm Output: Burg: 12 VDC, 2A (max.), Fire: 12 VDC, 65 mA
• Combined Standby Current: 500 mA residential burglary (4 hour standby), 500 mA residential fire (4 hour standby), 120 mA residential fire (24 hour standby)
• Current Limiting: Burg/Fire: 2.25 A
• Output: 2A, max.-burglar; 125mA, max.-fire
• Maximum Charging Current: 165mA
• Housing: 11" x 12 1/8" x 3" (H x W x D)
• Required Battery: 12V 4 AH or 7 AH rechargeable
• Max. Number of Keypads: 4 (Note: classic GEM-RP8 keypads cannot be intermixed on systems with other keypads with stay and away functions.
• Designer Keypad Dimensions: 4 3/8" x 5 7/8" x 1 1/6" (H x W x D); 11.1cm x 14.9cm x 2.7cm (HWD)
• Max. Number of Receivers: 2 (GEMRECV-XP8)
• Max Number of Compatible Smoke Detectors: 10
• Max. Keypad Wire Length: 1000 feet
