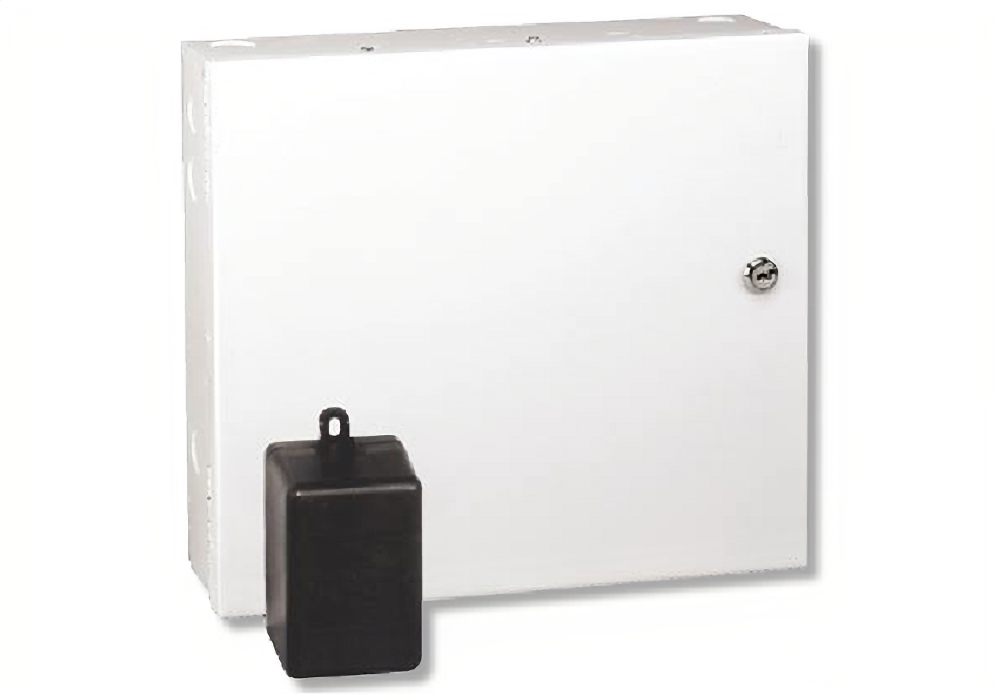

Napco Security GEM-P816 8-16 Zone Panel Only w/Trans

Napco Security Alarm GEM-P816 8-16 Zone Panel Only w/Trans offers an economical solution for both hardwired and wireless security needs. This versatile control panel is designed to work seamlessly with all standard Gemini keypads and wireless devices, making it an ideal choice for various applications. The GEM-P816 features 8 hybrid zones on-board, which include 2 dedicated 2-wire fire zones. For more extensive coverage, it can support up to 16 EOL zones through multiplexing, allowing integration with RP1CAe2 alpha keypads or multiplex expansion modules. The panel accommodates up to 16 users and supports the connection of up to 7 Gemini keypads, ensuring flexibility in user management. Event logging is a strong point, with the capability to log 256 events, while the interior bypass group adds an extra layer of control. The unit also includes three outputs and is compatible with a variety of Gemini RF receivers. Installation is straightforward, as the GEM-P816 comes with a transformer and operates efficiently across a temperature range of 0-49 degrees Celsius. With its robust features and specifications, including communication formats like Ademco point ID and SIA, the Napco Security Alarm GEM-P816 is a reliable choice for enhancing security systems in residential and commercial settings.

8-16 Zone Panel Only w/Trans

An economical hardwire/wireless control panel that works seamlessly with all standard Gemini keypads and wireless – the GEM-P816.

Features:

• 8 Hybrid zones on-board (hardwire or wireless), including 2 2-wire fire zones
• Up to 16 EOL zones with multiplexing (zones from RP1CAe2 alpha keypads or multiplex expansion modules)
• Uses low-cost GEM-EZM4/8 or 8-zone GEM-EZM8 expansion modules
• Up to 16 users
• Supports choice of up to 7 Gemini keypads
• 256 event logging
• 3 outputs
• Interior bypass group
• Choice of Gemini RF receivers
• Event log with open/close suppression
• Supports GEM-EVA voice annunciator and Wizard IIe talking phone-in interface module
• Includes transformer

Specifications:

• Input power 16.5VAC via class 2 plug-in 20 VA transformer
• Aux and remote power 12Vdc regulated
• 500 mA standby current rating with 20VA transformer, supplied
• 650 mA standby current rating with optional 40VA trans. 650mA
• Alarm current 2A
• Loop Resist. 300 ohm max.; 50 ohm max for 2-wire fire
• Burg. Voltage Output -1; programmable negative outputs -2
• Operating temp. 0-49 degrees C.
• Communication formats: Ademco point ID, silent knight fast/slow, radionics fast/slow, universal high speed, SIA and pager.
