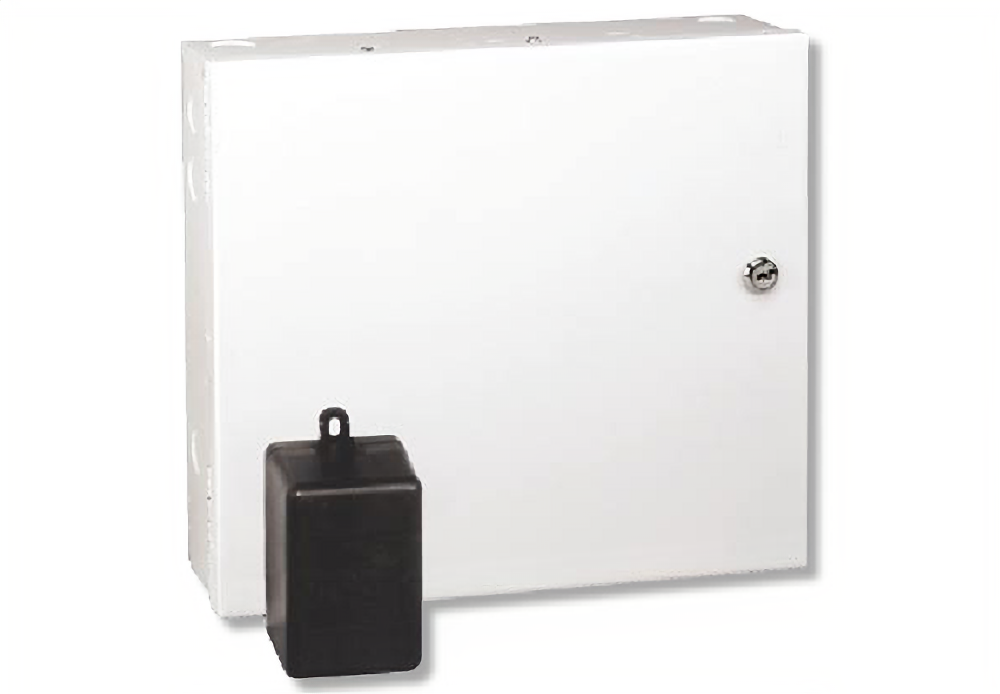

Napco Security GEM-P9600 8-96 Zones Control in Box 15 x 18

Napco Security Alarm GEM-P9600 is a powerful multi-tasking hybrid control panel designed for both security applications and home automation integration. With the capability to manage up to 96 zones through optional expansion modules, this control panel is equipped to handle various security needs, including 8 programmable end-of-line-resistor burglary zones and support for up to 8 two-wire fire zones. The GEM-P9600 offers impressive features such as exclusive RS232 panel-port communications for PC home automation and networking integration, along with up to 96 individually coded users, each with customizable authority levels. This model supports three on-board relay outputs and allows for up to 8 independent area partitions, enhancing its flexibility in securing spaces. The user-friendly design includes English-language prompts and customizable zone descriptions, making it easy to navigate and operate. Additionally, the system boasts extensive logging capabilities with an 800 event log and 255 event schedule. With dynamic battery testing, non-volatile RAM for memory retention during power loss, and the V.A.L.I.D feature to reduce false alarms, the GEM-P9600 ensures reliable performance. Designed to operate in temperatures ranging from 0-49ºC (32-120ºF), this control panel is both robust and versatile, making it an ideal choice for any security setup.

8-96 Zones Control in Box 15 x 18

Gemini P9600 powerful multi-tasking hybrid control panel – feature-rich for security applications and home automation integration.

Features:

• 8 End-of-line-resistor burglary zones programmable for area, exit/entry delay, interior, follower, day zone, chime, fire option, sensor watch, swinger shutdown, zone ANDing and a variety of other features
• Up to 96 zones with optional zone-expansion modules and 4-zone keypads
• Including up to 8 2-wire fire zones
• Up to 96 individually coded users, each with a programmable authority level
• Exclusive RS232 panel-port supports PC home automation/ networking integration for 9600 baud comprehensive communications
• 3 On-board relay outputs; expandable to 96
• Three keypad panics: fire, police and auxiliary
• Up to 8 independent area partitions
• Up to 8 separate access stations by up to 96 users
• Up to 64 separately-addressable X-10 devices with the GEM-X10 kit
• English-language prompts and system status messages from choice of keypad models
• User-customized zone descriptions, reprogrammable as required
• Supports 2-wire and 4-wire smoke detectors
• Reports alarms, restores and troubles by zone
• 255 Event schedule
• 800 Event log
• Overview mode permits monitoring and control of total system from one keypad
• Supports up to 4 RF receivers
• Guard-tour programmable for start time, tour length, and check points (tour stations)
• 2 Programmable entry delay times
• 2 Interior-bypass groups
• Dynamic battery test interrupts charging and places battery under load every four hours
• Chime by zone; programmable duration
• Non-volatile RAM retains memory during power losses
• Quick loader programmable
• Auto-download log
• Exclusive V.A.L.I.D. feature (verifying automatic line integrity diagnostic) reduces false alarms due to changes in line resistance

Specifications:

• Operating temperature: 0-49ºC (32-120ºF)
• Input power: 16.5Vac via class 2 plug-in 40VA transformer, supplied
• Loop voltage: 10-13VAC
• Loop current: 2.5mA with 2.2ohm end-of-line resistor (model EOL2.2K); 5mA for 2-wire smoke detector zones
• Loop resistance: 300W max.; 50W for 2-wire smoke detector zones
• Relay outputs (burglary; reset; aux): wet, 12Vdc, 1.2A max.; Dry (cut related jumper for dry contacts), SPDT contacts 24Vdc, 2A, 0:6 PF
• Auxiliary power output: 12Vdc regulated
• Remote power output: 12Vdc regulated (for keypads)
• 750 mA combined standby current remote power + aux. power + reset relay power
• Standby time: residential fire/burglary & commercial burglary, 4 hours minimum
• EZM module: GEM-EZM8: input, 50mA (including PGM output) PGM output: 5mA, 12V special application
• Keypad current: GEM-RP1CAE2: 100mA; 35mA if back lighting is disabled (cut W1, W2 & W3) PGM output: 5mA, 12V special
