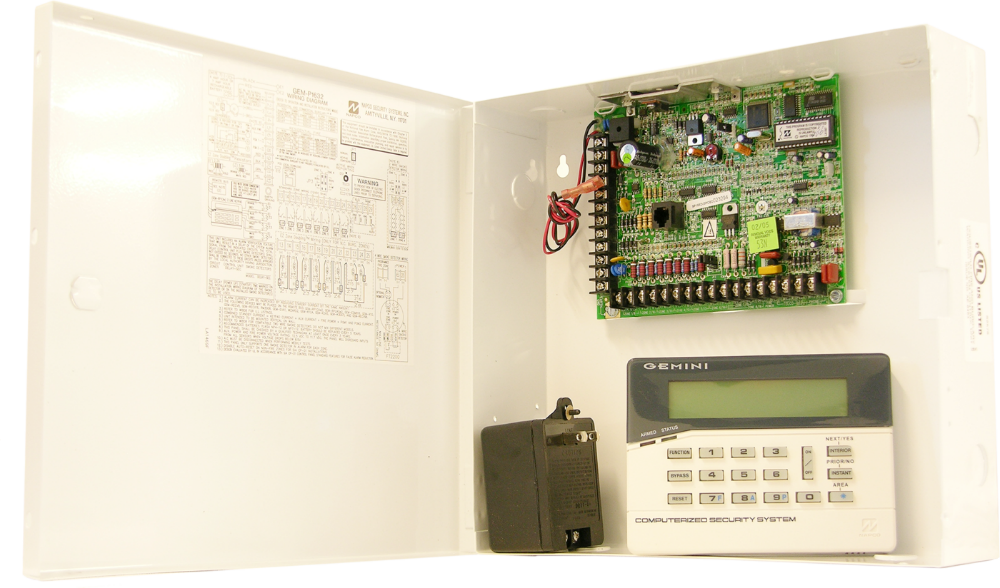

Napco Security GEMP1632INTRO Intro Pack 16/32 Zone w/RP1CAE2

Napco Security Alarm GEMP1632INTRO Intro Pack 16/32 Zone w/RP1CAE2 delivers exceptional versatility and performance for your security needs. This hybrid control panel supports 8 zones that can expand to a remarkable 32 zones, accommodating both hardwired and wireless setups. With the capability to manage up to 32 user codes and 8 relays, this system is designed for flexibility and ease of use. Notable features include a user-friendly "Self-Programming Plus 2" mode, which simplifies installation with a menu-driven process. The panel also offers fuseless maintenance-free operation, making it a low-maintenance choice for busy professionals. With support for X-10 devices and a comprehensive event log, the GEM-P1632 ensures thorough monitoring and control over your security environment. This model is equipped with an array of outputs, including three on-board outputs and the potential for up to 16 external relay outputs. It can accommodate up to 2 RF receivers, enhancing wireless communication. The robust build can operate in temperatures ranging from 0 to 49 degrees C, ensuring reliability in various conditions. For enhanced security management, the GEM-P1632 features programmable entry delays, dynamic battery tests, and chime options by zone. Elevate your security infrastructure with the advanced capabilities of the Napco Security Alarm GEMP1632INTRO.

Intro Pack 16/32 Zone w/RP1CAE2

The Gemini GEM-P1632 hybrid 8 to 32-zone control/communicator features 8 zones expandable to 32 zones with (multiplexing) assignable to either of two areas. Supporting up to 32 user codes, 8 relays, and X-10 support, the GEM-P1632 powerhouse has it all, wireless or hardwire! The panel supports all reliable, crystal-control Gemini Wireless, proven in independent tests to outperform the top competitive brands.

Features:

• 8 Hardwire/wireless zones on board.
• Up to 32 zones with multiplex expansion including 2 2-wire fire zones (7;8)
• Uses economy GEMEZM4/8 Zone Expansion Module (or standard GEMEZM8).
• "Self-Programming Plus 2" menu-driven self-programming mode with either custom alpha keypad, GEMRP1CAe2 or KA1CA (with Stay and Away keys).
• Fuseless maintenance-free operation
• Up to 32 user codes.
• Up to 2 areas; partitionable by area.
• 3 on-board outputs, up to16 external relay outputs (RM3008s).
• Up to 2 RF receivers
• Interior bypass group with programmable automatic interior bypass.
• Up to 8 X-10 devices supported for 16 different events.
• 255 event schedule.
• 400 event log.
• Auto Arm.
• Uses up to 7 of any of the classic or K-series stay and away keypads: custom alpha/icon or digital keypads (as shown on right).
• Programmable Telco line cut supervision with delay.
• 3 keypad panic (F, P, A)
• Major communicator formats, including: 4/2, SIA, 4+2 and Point ID, plus pager.
• Backup/double/split reporting; three 20-digit telephone numbers.
• Dynamic battery test.
• Reports alarms, restores and troubles by zone.
• 2 programmable entry delay times.
• Chime by zone.
• 8 EOL burglary zones programmable for area, E/E delay, interior, follower, day zone, chime, fire options, sensor watch, swinger shutdown, cross zoning , etc.
• Multiplex Expandability with GEMEZM4/8 or GEMEZM8 zone expansion modules
• Quick loader up/downloading, including unique unattended method
• Choice of 8 or 16 pt Gemini RF receivers or keypad/receiver
• Event log with open/close suppression
• Supports Wizard IIe talking phone-in interface module

Specifications:

• Output power amps: (with 20VA transformer included) 500mA/2A; with optional 40VA trans 650mA/2A.
• Operating temp: 0 - 49 degrees C.
• Input power: 16.5VAC via Class 2 plug-in 40VA transformer
• Loop voltage: 10-13Vdc
• Loop current: 2.5mA with 2.2k ohm EOLR; 5mA for 2-wire fire
• Loop resist.: 300 ohm max.; 50 ohm max for 2-wire fire
• Aux & remote power: 12Vdc regulated
• Combined standby current: 650mA
• Alarm current: 2A
• Burg. voltage output: 1; Programmable negative outputs: 2
