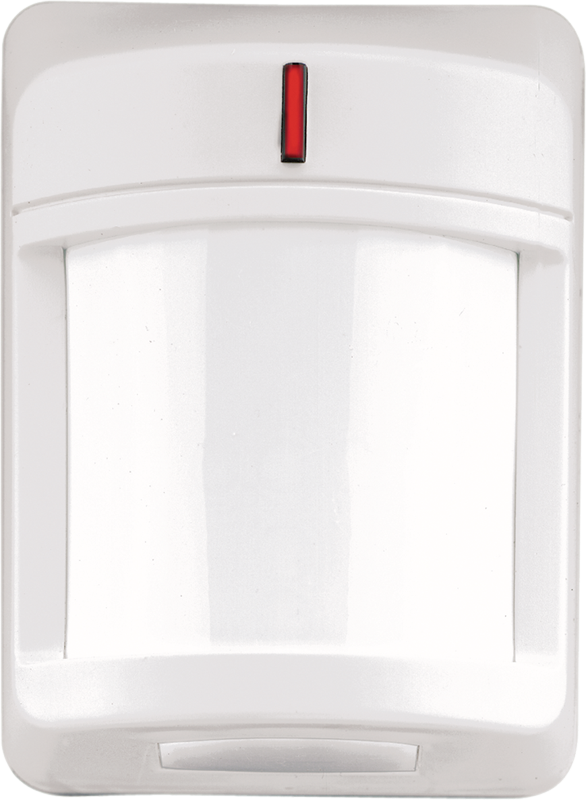

Napco Security PIR1510 30 x 30 ASIC PIR w/Lookdown

Napco Security Alarm PIR1510 30 x 30 ASIC PIR w/Lookdown delivers exceptional reliability and performance for residential and light commercial security applications. This passive infrared motion detector boasts a wide-angle coverage of 30’ x 30’ (9.1m²) and features an innovative look-down zone that ensures no intruder escapes detection directly beneath the sensor. The PIR1510 is equipped with advanced signal selective processing (S.S.P.) circuitry, which automatically adjusts sensitivity based on environmental conditions, effectively minimizing false alarms. Its custom-engineered aspheric optics provide an optimized field of view, and the unit can be further customized with field-changeable lenses for specialized applications. Installation is a breeze with its flexible mounting options, allowing for wall or corner placement, while a generous wiring channel and captive PCB screw facilitate quick, tidy setups. The device is also designed with tamper supervision to thwart vandalism attempts, ensuring robust protection. With a wide operating temperature range of -10 to +50 degrees Celsius (14º to 122º F) and a 5-year warranty backing its durability, the PIR1510 is a dependable choice for enhancing security. Experience peace of mind knowing that you have a powerful motion detection solution from Napco Security Alarm.

30 x 30 ASIC PIR w/Lookdown

The tried and true PIR1500 & 1510 passive infrared motion detectors offer dependable Napco sensor technology optimizing intruder catch sensitivity with false alarm prevention. Both compact, unobtrusive units blend with any décor and Feature a 30’ x 30’ (9.1m2) wide angle coverage. The PIR1510 model provides additional coverage directly beneath the sensor, using its look-down or creep-zone.

Features:

• Convenient range suitable for most residential & light commercial installations: 30’ x 30’ (9.1 x 9.1m) range
• Look-down/creep zone PIR1510 model provides detection zones directly beneath the sensor for inescapable intruder "catch"
• Increased stability with automatic sensitivity selection S.S.P. (signal selective processing) circuitry enables the unit to analyze incoming signals and adjust its sensitivity to provide the optimal sensitivity setting depending upon the harshness of its application environment, for automatic false-alarm rejection.
• Optimized field-of-view with custom-engineered aspheric optics Napco’s fresnel lenses are carefully designed to provide the ideal lens array and are easily-aimable during installation. Additional field-changeable lenses are available: Barrier, long-range and pet-alley.
• RFI-/EFI-/lightning protection resilient SMD circuit design ensures the units’ proper performance despite nuisance interference due to static discharge, power surges, electric spikes, etc.
• Fast, flexible mounting The detector is conveniently installed on walls or in a corner and may be more precisely aimed horizontally or vertically, by repositioning the PCB within the enclosure for a full range of coverage. Large wiring channel, generous terminal strip and captive PCB screw combine for fast, trouble-free, neat installations every time.
• Tamper/vandalism supervision defeats acts to sabotage or vandalize the unit by reporting them to the system if opening the enclosure is ever attempted.
• Added False Alarm Prevention Features The unit employs myriad features to ensure only valid alarms are reported in the system, saving time and money. This includes properties of its circuitry and fresnel optics, which include integral extra white light protection, a Napco-pioneered innovation.
• 5 year warranty Napco stands behind all of its sensors with an unsurpassed 5 year warranty, for your added peace-of-mind.

Specifications:

• Operating temperature: -10 to +50 degrees C (14 º to 122º F)
• Mounting: Wall or corner, 12’ (3.6m) max. (optional SVL2 Swivel Bracket can be used for pattern aiming and for mounting heights above 12 ft. (3.6m)
• Output relay: Form A; normally closed
• Relay time: Approx. 3 seconds
• Alarm Relay: 100mA, 24Vdc with internal 10 ohm current limiting resistor
• Power supply requirements: 10.6 to 16VDC nominal with battery backup from the control panel.
• Current drain: 23mA (idle/alarm) at 12VDC (nominal); 33mA (idle or alarm ) at 16VDC (nominal); 44mA (trouble condition) at 16VDC (nominal)
• Dimensions: 3.3"H x 2.5"W x 1.9"D (8.4 x 6.4 x 4.8 cm) (HxWxD)
