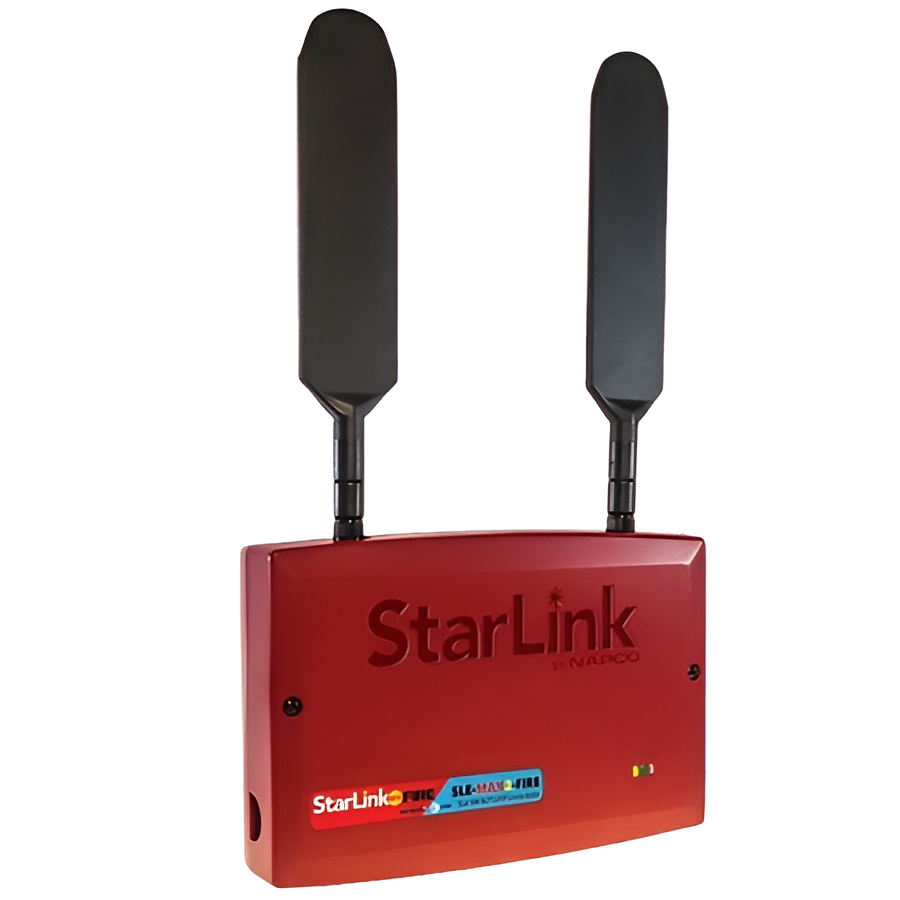

Napco Security SLE-MAX2-CFB-PS StarLink MAX2 Dual Path Fire Alarm Communicator with Metal Enclosure

Napco Security Alarm SLE-MAX2-CFB-PS StarLink MAX2 Commercial Dual Path Fire IP / Cellular Alarm Communicator offers an advanced solution for fire alarm reporting with unparalleled reliability. This communicator features dual SIM, dual path technology, allowing seamless data transmission over 5G LTE-M cellular networks or IP, ensuring your fire alarms are monitored from virtually anywhere nationwide. Designed for universal installation, it connects effortlessly to any 12V to 24V fire alarm control panel (FACU) using quick-connect modular jacks. The locking metal enclosure not only provides durability but also houses a power supply, making it ideal for commercial applications. The SLE-MAX2-CFB-PS automatically selects the best cell carrier upon power-up, optimizing performance by analyzing signal strength from both AT&T and Verizon. With remote access to StarLink Network operations, users can set parameters and check SIM status easily from any smart device. Compliant with UL & NFPA codes, this device replaces two POTS lines per FACU, delivering significant cost savings over traditional landlines. The proven reliability and advanced signal acquisition technology ensure consistent performance, even in challenging environments. With dimensions of 11.5" x 9.5" x 3.5", the metal housing is designed for easy wall mounting.

StarLink MAX2 Commercial Dual Path Fire IP / Cellular Alarm Communicator (Verizon, ATT), Locking Metal Enclosure with Power Supply, Red

Easy, universal installation at every application; standardly w/ panel- powered technology or metal units with choice of power source. StarLink fire communicators are easily connected to any 12V to 24V panel or fire alarm control panel (FACU) using easy quick-connect FACP modular jacks. For any application, StarLink max fire 2 series comes in standard, ABS plastic panel-powered technology (powered by the panel), models, or in metal housings w/ or w/o & choice of power options, i.e., direct-connect 120VAC or plug-in transformer. Quick Tip: Using StarLink fire max 2 with power supply models (suffix -PS) eliminates the need to do recalculations on the fire system being retrofitted as well.

Features:

• Dual SIM, dual path universal full data 5G LTE-M cellular &/or IP commercial fire alarm reporting from any panel brand, virtually anywhere nationwide
• One Model to Stock: Provides both Verizon & AT&T Cell Networks plus either sole or dual path cell/IP reporting (selectable by plan)
• Auto-Network-Select by site – upon power up, the signal-strength provided by each cell carrier is analyzed at the site, and the unit will lock-in the best carrier automatically, ie., AT&T or Verizon. Thereafter, it’s periodically reviewed and dynamically swapped when needed.
• EZ Cell-Network ID- red or blue indicators – inside the unit, the carrier indicators will light blue for AT&T or red for Verizon connection (also test button indicates signal strength on each for manual check)
• See /set SIM status remotely - using a PC or smart device, the StarLink Network operations center (NOC), in Napco headquarters, NY, can be accessed allowing you used to set parameters or view current status, dual SIM status of accounts
• Supports 12V-24V FACUs, bo panel reprogramming with those that communicate using contact ID and 4/2 (such as on legacy panels), as primary or backup.
• UL & NFPA code-compliant, replaces 2 POTs lines per FACU saves thousands of dollars per year over the leased landlines. (show accounts savings - free sales tool /calculator app left)
• Proven StarLink reliability & best 5G LTE-M performance – works where others can’t - signal boost circuitry & unique dual-diversity twin antennas, maximizing signal acquisition and eliminating the multiphase-effect signal-clash/drop-outs single-antenna units are prone to.

Specifications:

• Electrical Ratings for 120VAC, 60Hz Input Voltage: 120VAC nominal
• Input Current: 200mA maximum
• Maximum Charging Current: 200mA
• Electrical Ratings Fire Input 1: Input Voltage: 9-25VDC
• Max Input Current: Up to 2mA from FACU NAC circuit
• Maximum Loop Voltage: 25VDC
• Maximum Loop Current: 1.2mA (metal models); 1.7mA (plastic)
• End of Line Resistor (EOLR) Value: 10K
• Open Collector Output: Max Voltage 3V when active; 25V max. when not.
• PGM Max Sink Current: 50mA (up to 15VDC), 25mA (15.1VDC -25VDC)
• Plastic Housing: 8 x 5-1/2 x 1-1/2 "(WHD) + antennas (2ea, supplied) 8-1/4" H
• Metal Housing: 11-1/2 x 9-1/2 x 3-1/2"(WHD) + antennas (2ea, supplied) 8-1/4" H
• Housings: 2 Keyholes for wall mount
• Operating Temp.: 32 to 120°F , 93% Humidity Max.
