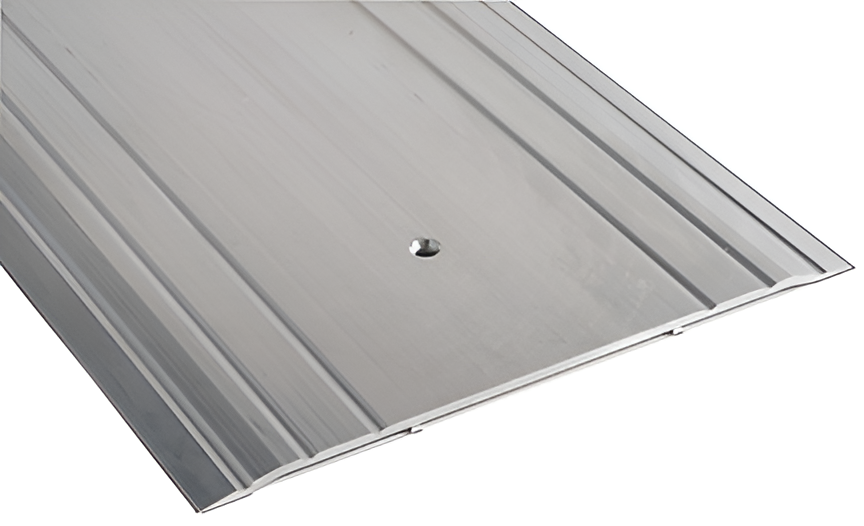

NGP 1013 48" Mill Aluminum Saddle Threshold is an essential solution for creating seamless transitions in commercial restroom spaces. Crafted from durable aluminum alloy 6063 with T5 temper, this threshold measures 10" wide and stands 1/4" tall, ensuring robust performance and longevity. The fluted top design not only enhances aesthetics but also provides added traction for safety. This threshold is BHMA certified to ANSI/BHMA A156.21, having successfully passed a rigorous 1,000 lb. load test, making it a reliable choice for high-traffic areas. Weighing just 1.63 lbs. per foot, it is lightweight yet sturdy, and its typical wall thickness of .125" ensures durability without compromising ease of installation. Included with the threshold are #10 x 1-1/2" FH zinc-plated wood screws for straightforward mounting. The mill finish adds a sleek, modern touch, easily blending into various restroom designs. Additionally, the NGP 1013 complies with ADA standards for accessible design, making it an ideal choice for facilities looking to enhance accessibility. With its combination of strength, safety, and style, the NGP 1013 Saddle Threshold is a smart investment for any building professional or knowledgeable homeowner seeking reliable restroom partition hardware.
Attributes
Restriction message: Due to the fragile nature of this item, it can be easily damaged in shipping. The following charges apply to insure your items arrive in good condition. 1 to 12 Pieces: $19.50 13 to 24 Pieces: $39.50 25 to 36 Pieces: $58.50
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: 1013 48IN, 101348IN
BHMA: BHMA certified to ANSI/BHMA A156.21 1,000 lb. load test
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
Certifications: A156.21, NFPA 252, NFPA 80, UL 10b, UL 10C
Commercial Residential: Commercial
Dimensions: 10" wide x 1/4" tall
Door Application: Thresholds & Seals
Door Type: Hollow Metal, Wood
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included
Finish: Mill finish
Finish Color: Aluminum
Finish Description: Milled Aluminum
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 3 Hours
Height: 1/4"
Installation: Commercial
Length: 48.0"
Manufacturer: National Guard Products
Material: Aluminum alloy 6063, T5 temper
Pack Qty: 1
Restrictions: Fragile
Series: 1013
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Subtype: Threshold
Type: Hinges and Pivots
Ul Listing: UL10C
Unit of Measure: Each
Wall Thickness: Typical wall thickness .125"
Weight: Weight: 1.63 lbs./ft.
Width: 10"
