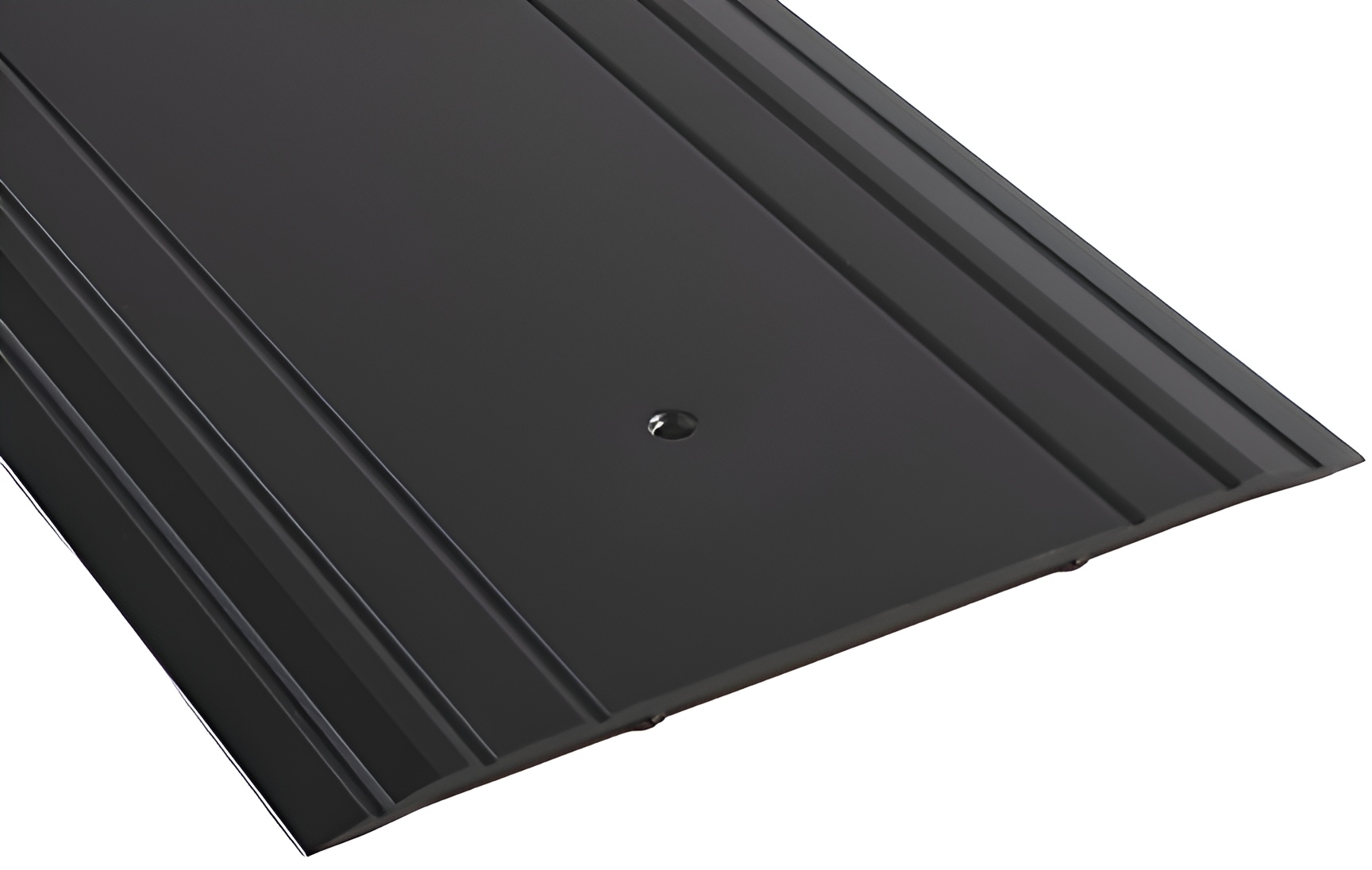

NGP 1013DKB 36" DKB-finish Aluminum Saddle Threshold is expertly crafted from aluminum alloy 6063 in T5 temper, ensuring durability and strength. With dimensions of 10" wide and 1/4" tall, this threshold provides a seamless transition while maintaining accessibility standards. Its fluted top design not only adds an aesthetic touch but also enhances grip for safer passage. Certified by BHMA to ANSI/BHMA A156.21, this threshold withstands a rigorous 1,000 lb. load test, making it suitable for high-traffic commercial environments. Weighing just 1.63 lbs./ft., it is lightweight yet robust, with a typical wall thickness of .125". The dark bronze finish adds a refined touch that complements various decor styles. Included with the threshold are #10 x 1-1/2" FH zinc plated wood screws for easy installation. The NGP 1013DKB is ADA compliant, ensuring it meets the requirements for accessible design as outlined in ICC/ANSI A117.1. Additionally, it is certified by UL for fire door applications, making it a reliable choice for both hollow metal and wood fire doors rated up to 90 minutes. Elevate your commercial restroom space with the NGP 1013DKB threshold, combining functionality and style.
Attributes
Alternate Codes: 1013DKB 36IN, 1013DKB36IN
BHMA: BHMA certified to ANSI/BHMA A156.21 1,000 lb. load test
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
Certifications: A156.21, NFPA 252, NFPA 80, UL 10b, UL 10C
Dimensions: 10" wide x 1/4" tall
Door Application: Thresholds & Seals
Door Type: Hollow Metal, Wood
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included
Finish: Dark bronze finish
Finish Color: Dark Bronze Anodized
Finish Description: Dark Bronze
Fire Rated: Yes
Fire Rating: 180 min, 90 min
Height: 1/4"
Length: 36.0"
Manufacturer: National Guard Products
Material: Aluminum alloy 6063, T5 temper
Series: 1013
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Subtype: Thresholds
Type: Hinges and Pivots
Wall Thickness: Typical wall thickness .125"
Weight: Weight: 1.63 lbs./ft.
Width: 10"
