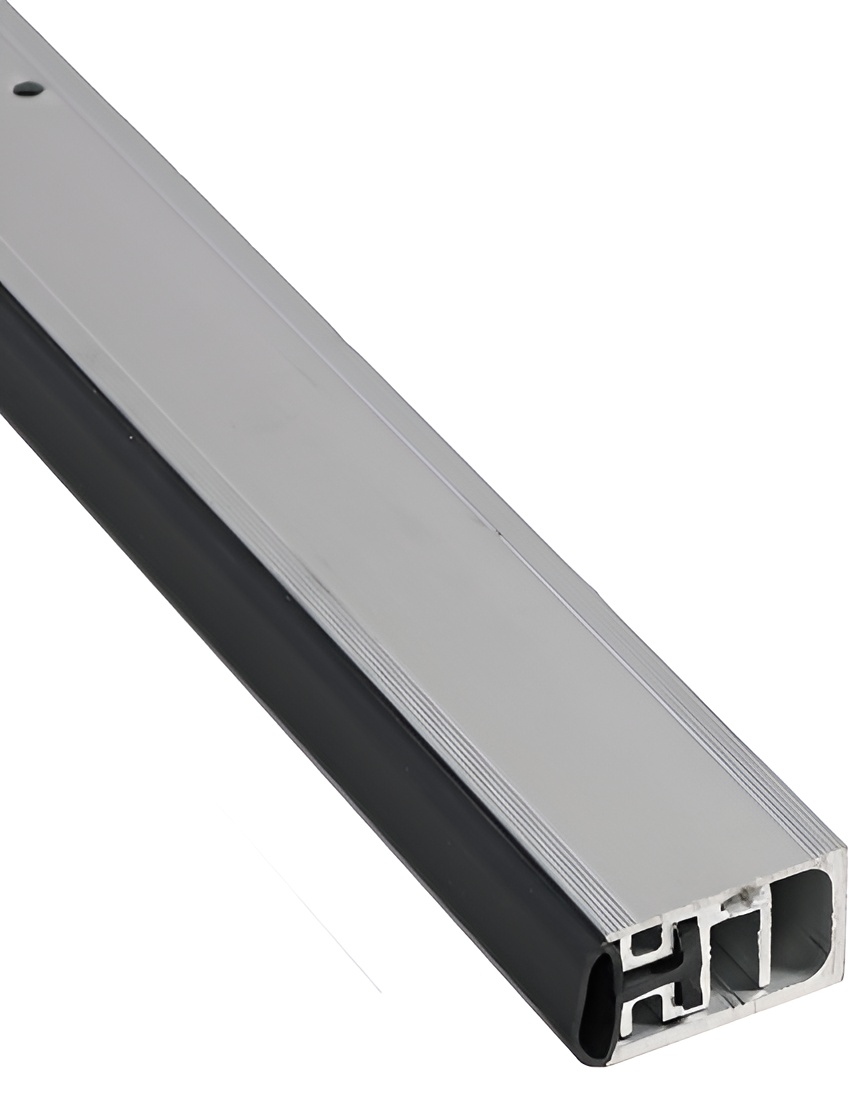

NGP 1038NA 96" Anodized Aluminum Adjustable Neoprene Perimeter Seal offers outstanding durability and performance for commercial restroom partitions. Constructed from high-quality Aluminum Alloy 6063 with a T5 temper, this seal is designed to withstand demanding environments while providing excellent abrasion resistance and tensile strength. The synthetic EPDM rubber, encased in a polypropylene thermoplastic matrix, ensures optimal flexibility and memory retention, making it an ideal choice for various applications. This perimeter seal is flame-resistant and moisture-resistant, functioning effectively within a temperature range of -81°F to 275°F. With BHMA certification to ANSI/BHMA A156.22 performance tests for heat and cold, you can trust its reliability. The adjustment screws, placed on 10" centers, allow for easy adjustment without needing to reposition the mounting location, simplifying installation. Additionally, the NGP 1038NA features good resistance to ozone, sunlight, and aging, ensuring longevity in various conditions. The sleek black anodized aluminum finish not only provides aesthetic appeal but also enhances durability. Fasteners included are #6 x 3/4" or #6 x 1-1/2" stainless steel SMS, ensuring a secure fit. Trust NGP for your partition hardware needs and experience the quality craftsmanship that sets them apart.
Attributes
Ship via: No UPS - Common Carrier Only
Restriction message: Due to the large package size of this item, shipping charges will be as follows: 1 to 12 Units: $130.00 13 to 24 Units: $260.00 25 to 36 Units: $390.00
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Color is Black
Commercial Residential: Commercial
Fasteners: #6 x 3/4" or #6 x 1-1/2" Stainless Steel SMS Furnished
Finish: Anodized Aluminum
Finish Description: Satin Aluminum Clear Anodized
Finish Family: Matte Silver
Fire Rated: Flame-Resistant
Fire Rating: 3 Hours
Installation: Commercial
Length: 96.0"
Material: Aluminum Alloy 6063, T5 Temper
Moisture Resistant: YES
Pack Qty: 1
Resistance: Good Resistance to Ozone, Sunlight and Aging
Restrictions: Largethin
Series: NGP Gasketing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: ACOUSTICAL TESTED to ASTM E90 Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements, and ASTM E2235 Standard Test Method for Determination of Decay Rates for use in Sound Insulation Test Methods. Refer to information on pages G8 thru G10 of our Gasketing catalog for test result data.
Standard-4: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-5: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Subtype: Weatherstrip
Temperature Range: Temperature Range -81°F to 275°F
Type: Hinges and Pivots
Ul Listing: UL10C
Unit of Measure: Each
