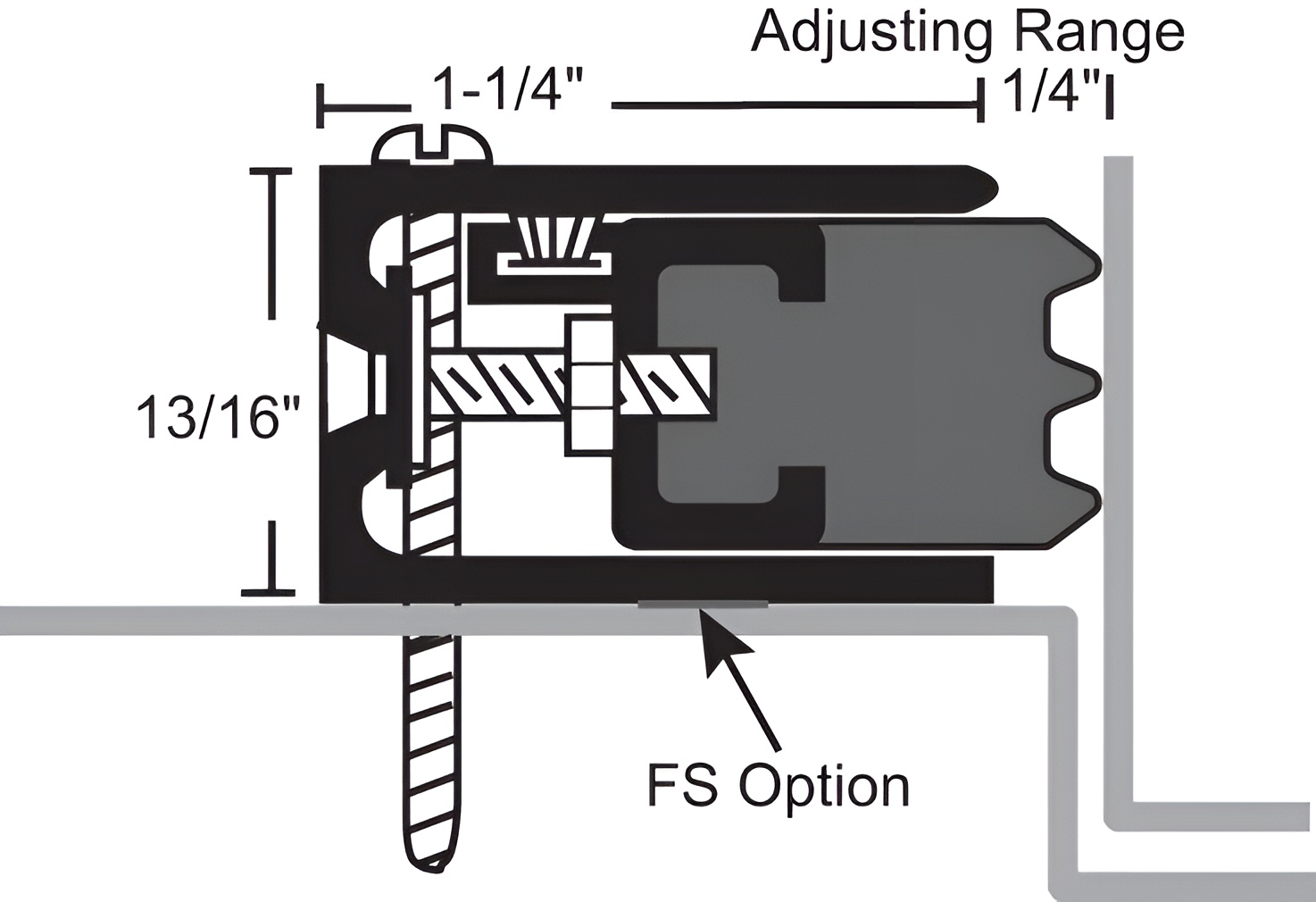

NGP 103NDKBFS 60" DKB-finish Aluminum Adjustable Neoprene Perimeter Seal offers superior performance and durability for commercial restroom partitions. Constructed from high-quality Aluminum Alloy 6063 in T5 temper, this seal integrates synthetic EPDM rubber within a polypropylene thermoplastic matrix, creating a closed-cell advanced elastomeric foam that excels in abrasion resistance, tensile strength, and memory. This perimeter seal is flame-resistant and moisture-resistant, ensuring longevity and reliability in various conditions. It operates effectively within a temperature range of -81°F to 275°F, showcasing excellent resistance to ozone, sunlight, and aging. With BHMA certification to ANSI/BHMA A156.22 performance tests, the NGP 103NDKBFS meets stringent industry standards for heat and cold, making it an ideal choice for any application. Installation is simplified with adjustment screws placed on 10-inch centers, allowing for easy adjustments without repositioning the mounting location. The product comes with stainless steel fasteners (#6 x 3/4" or #6 x 1-1/2") for added convenience. Finished in a sleek dark bronze, this black perimeter seal not only enhances functionality but also complements modern designs. Choose NGP for dependable, high-performance partition hardware solutions.
Attributes
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Color is black
Fasteners: #6 x 3/4" or #6 x 1-1/2" Stainless Steel SMS Furnished
Finish: Dark Bronze Finish
Fire Rated: Flame-Resistant
Length: 60.0"
Material: Aluminum Alloy 6063, T5 Temper
Moisture Resistant: YES
Resistance: Good Resistance to Ozone, Sunlight and Aging
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: ACOUSTICAL TESTED to ASTM E90 Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements, and ASTM E2235 Standard Test Method for Determination of Decay Rates for use in Sound Insulation Test Methods. Refer to information on pages G8 thru G10 of our Gasketing catalog for test result data.
Standard-4: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-5: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature Range -81°F to 275°F
