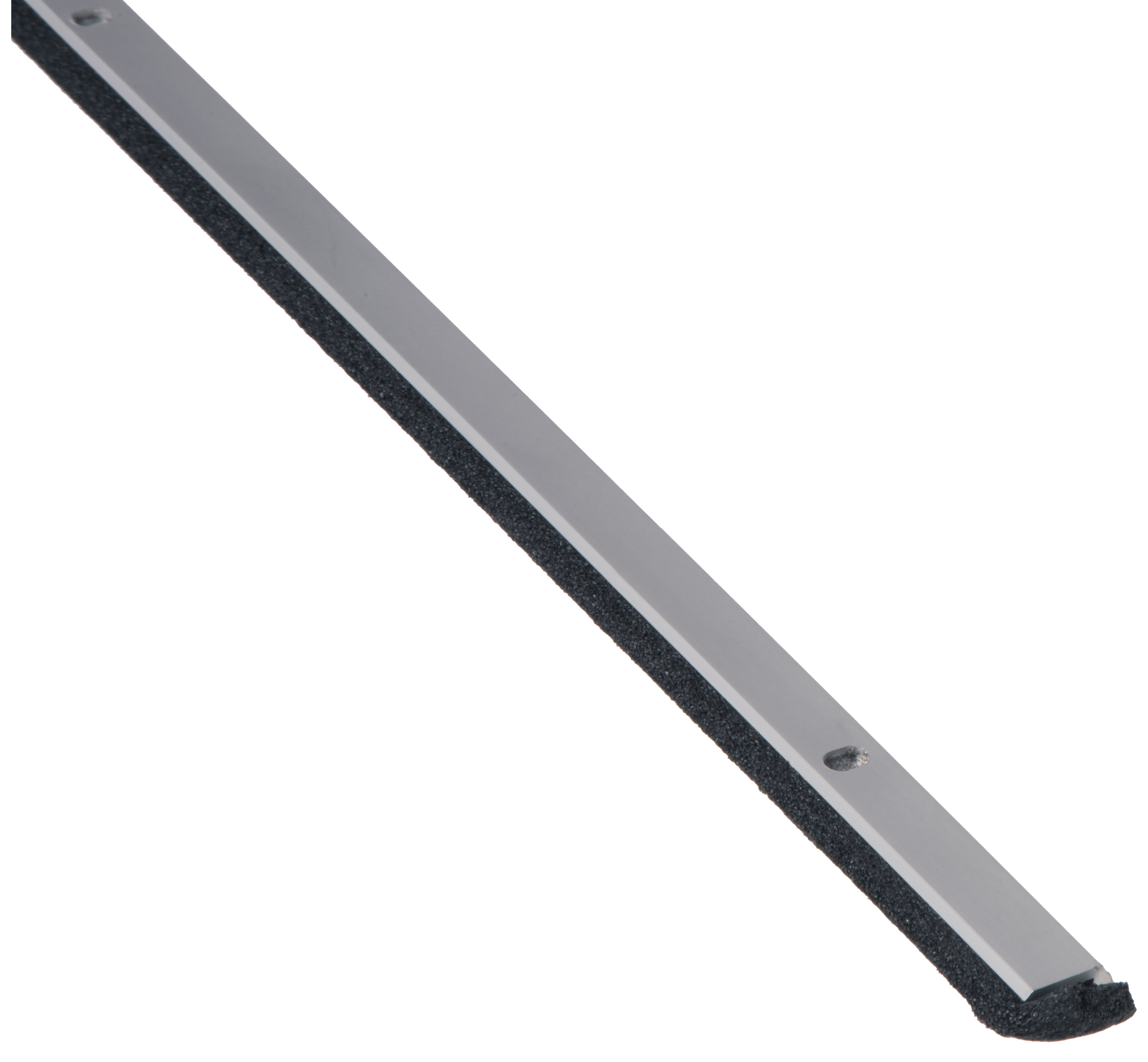

NGP 110NA 36" Anodized Aluminum Neoprene Sponge Seal is engineered for durability and performance in commercial restroom applications. Constructed from Aluminum Alloy 6063 with T5 temper, this seal features a unique synthetic EPDM rubber embedded in a polypropylene thermoplastic matrix, resulting in a closed-cell advanced elastomeric foam that excels in both abrasion resistance and tensile strength. Designed to withstand extreme conditions, the NGP 110NA operates efficiently within a temperature range of -81°F to 275°F. Its flame-resistant and moisture-resistant properties ensure longevity and reliability, making it ideal for high-traffic environments. The seal also boasts excellent resistance to ozone, sunlight, and aging, which contributes to its extended lifespan. Installation is straightforward, with slotted screw holes allowing for easy adjustment. Each unit comes with #6 x 3/4" stainless steel sheet metal screws for added convenience. Additionally, the NGP 110NA is BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold, ensuring it meets rigorous industry standards. With its sleek black finish and anodized aluminum construction, this sponge seal not only performs well but also complements a modern aesthetic. Choose the NGP 110NA for a reliable, high-quality solution to your restroom partition needs.
Attributes
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Color is Black
Fasteners: #6 x 3/4" Stainless Steel Sheet Metal Screws Furnished
Finish: Anodized Aluminum
Finish Description: Satin Aluminum Clear Anodized
Fire Rated: Flame-Resistant
Length: 36.0"
Material: Aluminum Alloy 6063, T5 Temper
Moisture Resistant: YES
Patented: Patent Pending Microcellular EPDM
Resistance: Good Resistance to Ozone, Sunlight and Aging
Series: NGP Gasketing
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Subtype: Weatherstrip
Temperature Range: Temperature Range -81°F to 275°F
Type: Hinges and Pivots
